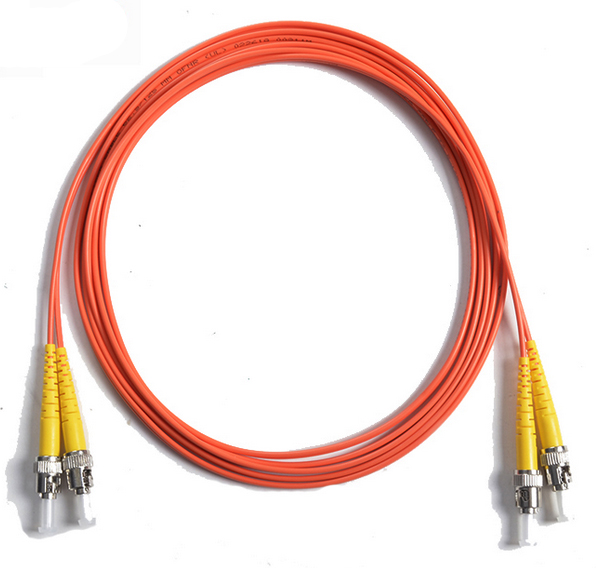

62.5/125 Duplex orange Fiber Optic Patch Cord , 5Mtrs PVC cable
62.5/125 Duplex orange Fiber Optic Patch Cord , 5Mtrs PVC cable
62.5/125 Duplex orange Fiber Optic Patch Cord , 5Mtrs PVC cable
62.5/125 Duplex orange Fiber Optic Patch Cord , 5Mtrs PVC cable
Specifications
Brand Name :
CY COM
Model Number :
ST Multimode Patch Cord
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20pcs
Price :
USD3.1-3.5/PCS
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Fiber type :
62.5/125
Cable Jacket :
PVC
Color :
Orange
Length :
Can be customized
Description

62.5/125 Duplex orange Fiber Optic Patch Cord , 5Mtrs PVC cable

►Application:

-FTTH , CATV, LAN, MAN, WAN, Test &Measurement

-Fiber-optic communication system

-Fiber-optic data transmission

-Fiber-optic testing system

►Specification:

Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9

►Features:

-In-line with Telcordia GR-326-CORE standard

-Low insertion loss, high return loss, high reliability

-Good repeatability, interchangeability

-Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen

►Raw material​s:

-Inner frame: PBT, white (RoHS)

-Ferrule: zirconium oxide ceramic material, white (RoHS)

-Ferrule’s handle: copper (C3602), nickelage (RoHS)

-Mechanical spring: stainless steel (RoHS)

-Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)

-Snap ring: aluminium alloy 6063 (RoHS)

-Ring: copper alloy (HPD62), nickelage (RoHS)

-Boot: nylon or PBT, UPC/blue, APC/green, MM/beige

-Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP

►Order information:

-For example: ST/UPC to ST/UPC SM DX 3.0mm PVC orange Patch Cord

-Type: SX/DX optional

-Ferrule type: APC/PC

-Diameter: 0.9, 2.0, 3.0mm

-Length: 1, 2, 3 to 120m

-Fiber: SM/OM1/OM2/OM3/OM4

-Material of jacket: PVC/LSZH/OFNP

62.5/125 Duplex orange Fiber Optic Patch Cord , 5Mtrs PVC cable

62.5/125 Duplex orange Fiber Optic Patch Cord , 5Mtrs PVC cable
