ADSS All Dielectric Self Supporting Aerial Optical Fiber Cable For Aerial Method , 2-144 Cores
ADSS All Dielectric Self Supporting Aerial Optical Fiber Cable For Aerial Method , 2-144 Cores
ADSS All Dielectric Self Supporting Aerial Optical Fiber Cable For Aerial Method , 2-144 Cores
ADSS All Dielectric Self Supporting Aerial Optical Fiber Cable For Aerial Method , 2-144 Cores
Specifications
Brand Name :
CY
Model Number :
ADSS aerial outdoor cable
Certification :
SGS,RoHS
Place of Origin :
Guangdong
MOQ :
1000 Meters
Price :
USD 0.0625-1.25/Mtr
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
20000M per Day
Delivery Time :
in 4-6 days
Packaging Details :
2000Mtrs/Wooden shaft
Fiber number :
2-144
MOQ :
1000Mtrs
Structure :
Non-metal member
Maximum span(m) :
50-1000
Description

ADSS--All Dielectric Self-Supporting Aerial Optical Fiber Cable,suitable for aerial method,2-144 cores

Description:

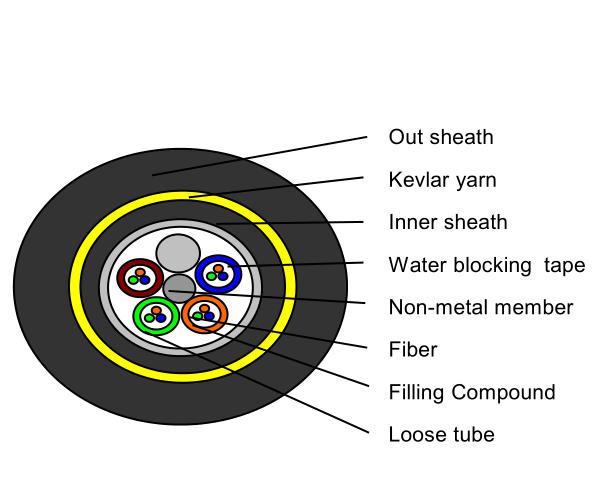

The fibers,250um,are positioned in a loose tube made of high modulus plastic.The tubes are filled with a
water-resistant filling compound.A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member.The tubes(and fillers) are stranded around the strength member in to a compact and circular core.After the cable core is filed with filling compound to protect it from water ingress.the cable is complted with a PE sheath.

Application:

  • Suitable for network in high electromagnetic interfering places.
  • Suitable for aerial
  • Long distance and local area network communication

Optical Characteristics:
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C,D) B1.1:Conventional fiber
G.653 B2: Zero dispersion shifted
G.654 B1.2 :Cut-off wavelength shifted
G.655 B4: Main technical data for positive
dispersion shifted single-mode fiber

Order Information:

  • Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
  • Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
  • Fiber count: 2-144
  • Cable length: 2000M/Drum( customized, MOQ=2000M)
  • Cable Jacket: Outer sheath Black
