Outdoor Fiber Optical Cable 2-24 Cores GYXTC8S Figure 8 Central Tube
Outdoor Fiber Optical Cable 2-24 Cores GYXTC8S Figure 8 Central Tube
Outdoor Fiber Optical Cable 2-24 Cores GYXTC8S Figure 8 Central Tube
Outdoor Fiber Optical Cable 2-24 Cores GYXTC8S Figure 8 Central Tube
Specifications
Brand Name :
CY
Model Number :
GYXTC8S
Certification :
SGS,RoHS
Place of Origin :
Guangdong
MOQ :
1000 Meters
Price :
USD 0.0625-1.25/Mtr
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
20000M per Day
Delivery Time :
in 4-6 days
Packaging Details :
2000Mtrs/Wooden shaft
Out jacket material :
PE
Cable type :
Outdoor cable
Fiber number :
2-24 fibers
Suitable for :
Aerial ,dust and self-supporting method
MOQ :
2000M
Description

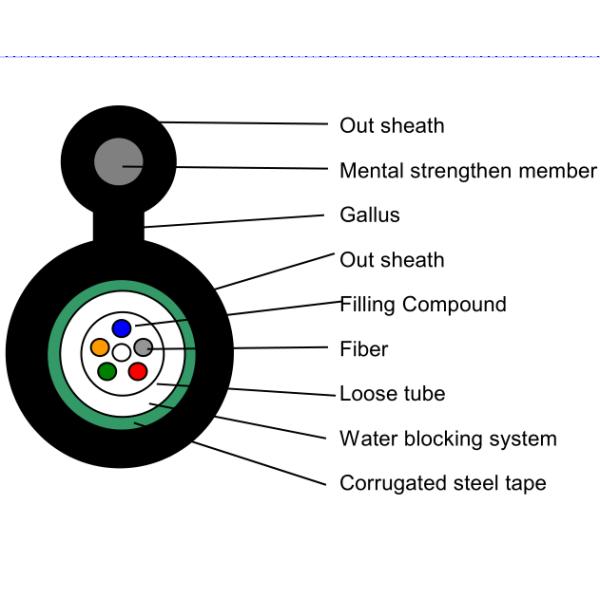

2-24 cores,GYXTC8S Figure 8 self-supporting central tube outdoor cable

Features:

  • Stainless steel or gaivanized steel self-supporting.
  • Excellet mechanical and environmental performance.
  • Good ultra violet radiation resestant.

Application:

  • Adopted to Outdoor distribution.
  • Suitable for aerial duct ,buried method(self-supporting method)
  • Long distance and local area network communication.

Specification:

Technical Parameters:
Cable Count Out sheath
Diameter		 Weight Minimum allowable Tensile Strength
(N)		 minimum allowable Crush Load
(N/100mm)		 Minimum Bending Radius
(MM)		 Storage
temperature
(mm) (KG) short term long term short term long term short term long term (℃)
6 3.0×9.8 54.00 1000 200 1000 200 20D 10D -40+60
8 3.0×9.8 54.00 1000 200 1000 200 20D 10D -40+60
12 3.0×9.8 54.00 1000 200 1000 200 20D 10D -40+60
24 3.0×9.8 54.00 1000 200 1000 200 20D 10D -40+60


Order Information:

  • Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
  • Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
  • Fiber count: 2-24
  • Cable length: 2000M/Drum( customized, MOQ=2000M)
  • Cable Jacket: Outer sheath Black

Outdoor Fiber Optical Cable 2-24 Cores GYXTC8S Figure 8 Central Tube
