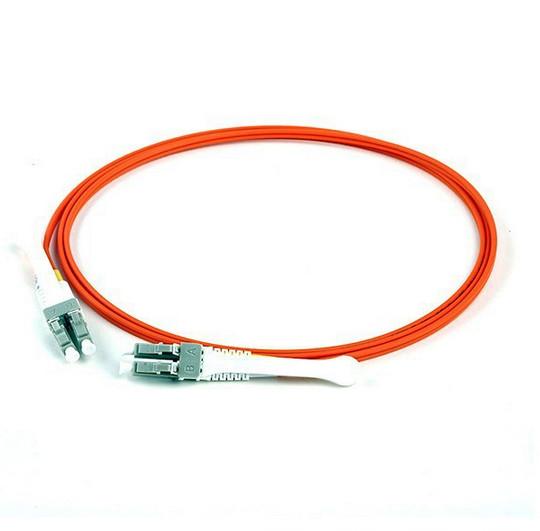

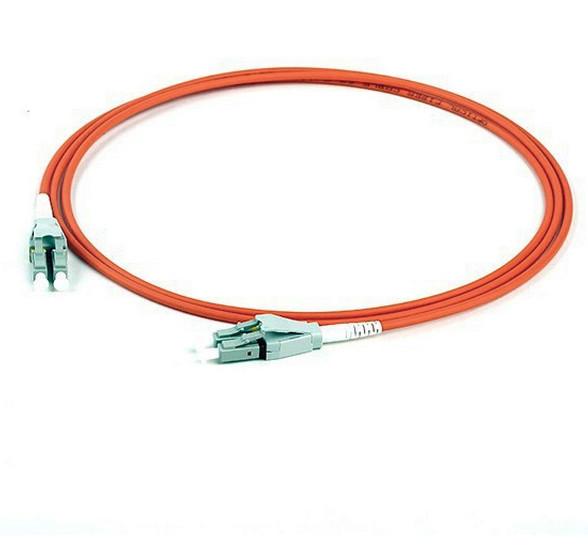

Orange Multimode Duplex Uniboot Fiber Optic Patch Cord 3Mtrs Corning LSZH
Orange Multimode Duplex Uniboot Fiber Optic Patch Cord 3Mtrs Corning LSZH
Orange Multimode Duplex Uniboot Fiber Optic Patch Cord 3Mtrs Corning LSZH
Orange Multimode Duplex Uniboot Fiber Optic Patch Cord 3Mtrs Corning LSZH
Specifications
Brand Name :
CY COM
Model Number :
LC uniboot Patch Cord
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20pcs
Price :
USD3.2-3.5/PCS
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Cable color :
Orange
Out jacket :
LSZH
Diameter :
2.0mm
Connector type :
Uniboot DX LC
Description

LC/UPC-LC/UPC multimode Duplex uniboot fiber optic patch cord, 3Mtrs corning LSZH orange cable

►Raw Material:

--Dust caps: LDPE, transparent (RoHS)

--Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)

--Inner frame: PBT, white (RoHS)

--Ferrule: Zirconium oxide ceramic material, white (RoHS)

--Ferrule’s handle: copper (C3602), nickelage (RoHS)

--Mechanical spring: stainless steel (RoHS)

--Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)

--Snap ring: aluminium alloy 6063 (RoHS)

--Ring: copper alloy (HPD62), nickelage (RoHS)

--Boot: nylon or PBT, UPC/blue, APC/green, MM/beige

--Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more

Application:

  1. FTTH and FTTX applications
  2. Active device termination
  3. Telecommunication networks
  4. Local area networks
  5. CATV

Order information:

♦Type: SX/DX optional
♦Ferrule end face: APC/UPC/PC
♦Diameter: 0.9, 2.0, 3.0mm
♦Length:1m, 2m, 3m to 120m
♦Fiber: SM/OM1/OM2/OM3/OM4
♦Material of jacket: PVC/LSZH/OFNR

Specifications :
Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9

Orange Multimode Duplex Uniboot Fiber Optic Patch Cord 3Mtrs Corning LSZH
