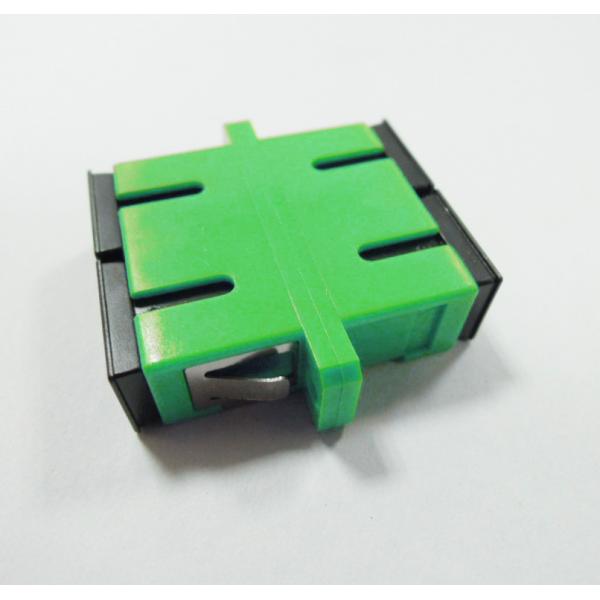

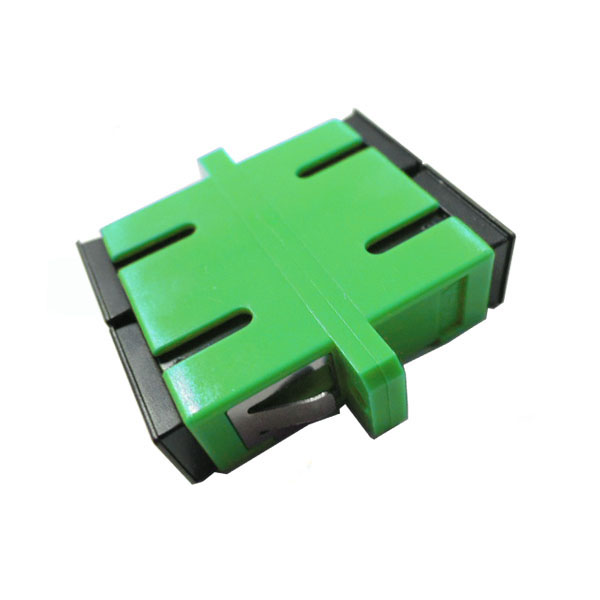

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange
Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange
Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange
Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange
Specifications
Brand Name :
CY COM
Model Number :
SC/APC DX adapter
Certification :
ISO9001:2008
Place of Origin :
Shenzhen , China
MOQ :
100pcs
Price :
USD0.12-0.24/PCS
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
4.5 MIllion PCS / Month
Delivery Time :
in 5-10 days
Packaging Details :
Plastic Box
Color :
Green
Structure :
Duplex
Material :
RoHS
Description

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Products introduction:


Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.

Features:

  • Low insertion loss;
  • Good repeatability and interchangeability;
  • Good environmental stability.

Specification:

rameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time ＞1000 ＞1000 ＞1000
Operating Temperature ℃ -40~75 -40~75 -40~75
Storage Temperature ℃ -45~85 -45~85 -45~85

Ordering Information:

  • For example:FC/UPC-SM-SX-Single "D" Type
  • Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
  • Ferrule end-face: PC,UPC,APC
  • Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
  • Appearance: with ear type, no ear type;
  • Material: copper alloy, zinc alloy, plastic.

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange
