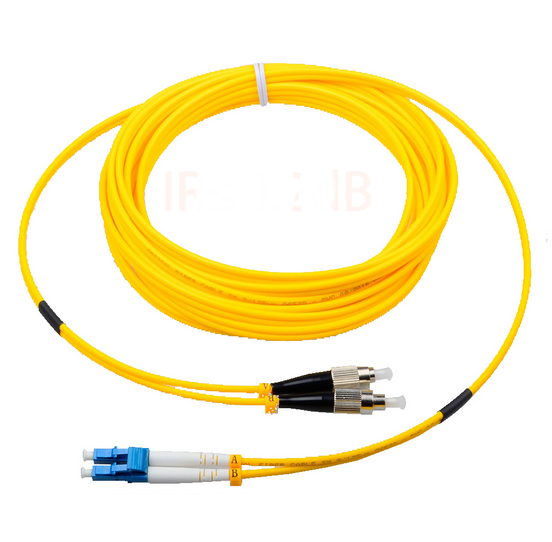

FC to LC singlemode duplex optical fiber jumper 0.2dB insertion loss corning fiber
FC to LC singlemode duplex optical fiber jumper 0.2dB insertion loss corning fiber
FC to LC singlemode duplex optical fiber jumper 0.2dB insertion loss corning fiber
FC to LC singlemode duplex optical fiber jumper 0.2dB insertion loss corning fiber
Specifications
Brand Name :
CY COM
Model Number :
FC-LC SM DX Patch Cord
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20pcs
Price :
USD3.0-4.5/PCS
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Cable Jacket :
LSZH
Color :
Yellow
Length :
Can be customized
Fiber type :
Corning fiber
Description


FC to LC singlemode duplex optical fiber jumper,<=0.2dB insertion loss,corning fiber

►Specifications :
Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9

►Application:

  1. Gigabit Ethernet
  2. Active device termination
  3. Telecommunication networks
  4. Video
  5. Multimedia
  6. Premise installations
  7. Local area networks
  8. FTTH and FTTX applications
  9. CATV


►Order information:

  1. Type: SX/DX optional
  2. Ferrule end face: APC/UPC/PC
  3. Diameter: 0.9, 2.0, 3.0mm
  4. Length:1m, 2m, 3m to 120m
  5. Fiber: SM/OM1/OM2/OM3/OM4
  6. Material of jacket: PVC/LSZH/OFNR

FC to LC singlemode duplex optical fiber jumper 0.2dB insertion loss corning fiber
