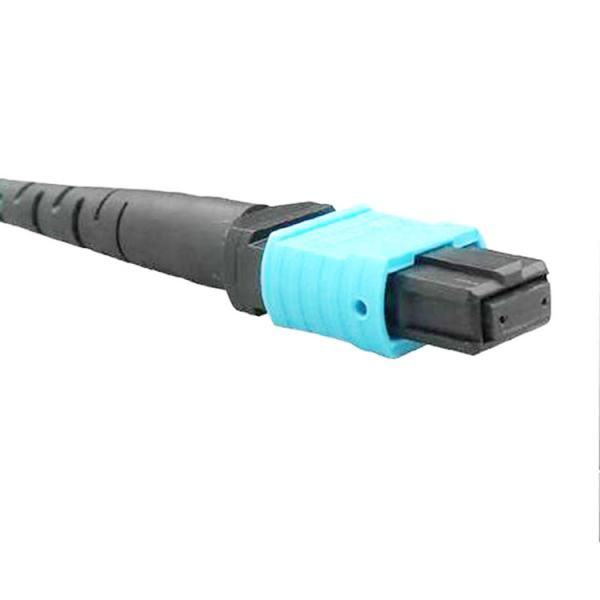

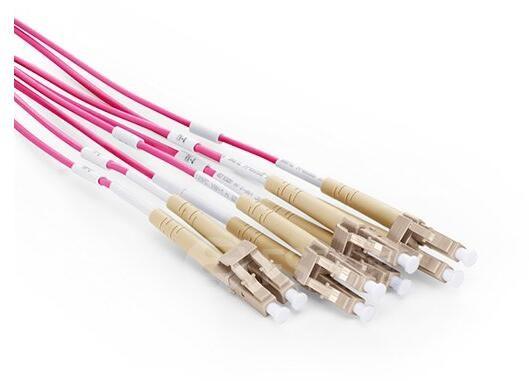

Aqua To LC 8F Core OM4 Mpo Optical Fiber Patch Cord
Aqua To LC 8F Core OM4 Mpo Optical Fiber Patch Cord
Aqua To LC 8F Core OM4 Mpo Optical Fiber Patch Cord
Aqua To LC 8F Core OM4 Mpo Optical Fiber Patch Cord
Aqua To LC 8F Core OM4 Mpo Optical Fiber Patch Cord
Aqua To LC 8F Core OM4 Mpo Optical Fiber Patch Cord
Specifications
Brand Name :
Senko / US CONEC / Furukawa Connector
Model Number :
MPO UPC -LC UPC OM4 8F
Certification :
ISO9001:2015
Place of Origin :
Shenzhen
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50K
Delivery Time :
3-5 working days
Packaging Details :
1 PCS /PE bag
Connector :
MPO 12F UPC Aqua
Cable diameter: :
3.0mm or 3.6mm branch to 2.0mm
Cable color :
Purple
Polarity :
A,B,C
Description
OM4 mpo aqua to LC fiber optic patch cord Fanout 8F cores 3.0mm to 2.0mm OFNP cable

MTP and MPO multimode cross over fiber optic cables. Cross over MPO cable is available configurations are Female to female or a male to male and male to female.

Cable options include, Riser Rated Jacket, Plenum rated jacket, LSZH. Round cable, ribbon cable, or bare ribbon cable.

The male version has MTP pins. Available in 4,8,12, 24, and 48 fiber array configurations.

We use USConec MTP fiber optic connectors for all of our MTP and MPO terminations so that the highest performance is accomplished. Many additional options and combinations are available. All multi fiber optic cables are customizable.

Advantages
  • Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer
  • Pretty high return loss:≥45dB
  • 5-year Experience R&D Team
  • Customized Production and Service
  • 40G/100G Data Center Solution
Application
  • Data center infrastructure
  • Storage area network
  • Emerging 40 & 100Gps Protocols
  • Parallel optics
  • Enterprise network cabling systerm
Technical Parameter
Item Technical Parameter
Connector MPO (Female) LC
Operation Temperature -40°C ~ +80°C
Storage Temperature -40°C ~ +85°C
Insertion Loss

SM: ≤ 0.75dB (standard value),

≤0.35dB (typical value);

MM:≤ 0.50dB (standard value),

≤0.35dB (typical value);

SM:≤ 0.2dB;

MM:≤ 0.2dB;
Return Loss

SM:≥60dB;

MM:≥35dB;

SM:≥60dB;

MM:≥35dB;
The MPO end type Male: with guide pin; Female: without guide pin
Fiber count 8,12&24 MT fiber
The other end of the connector type MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type 250um ribbon fiber,ribbon cable,Bundle fiber optic cable

Polarity

Aqua To LC 8F Core OM4 Mpo Optical Fiber Patch Cord


Aqua To LC 8F Core OM4 Mpo Optical Fiber Patch Cord
