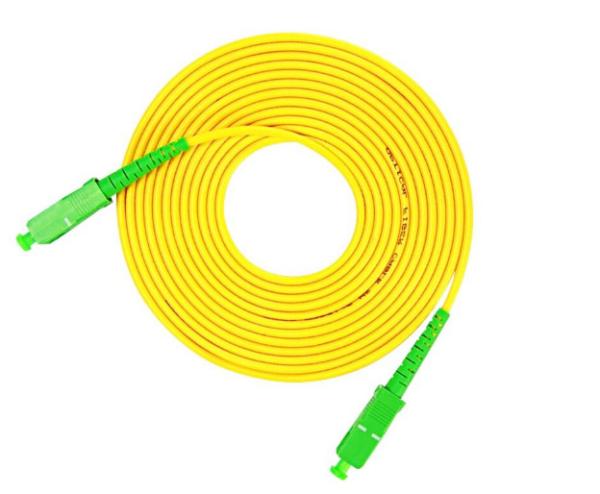

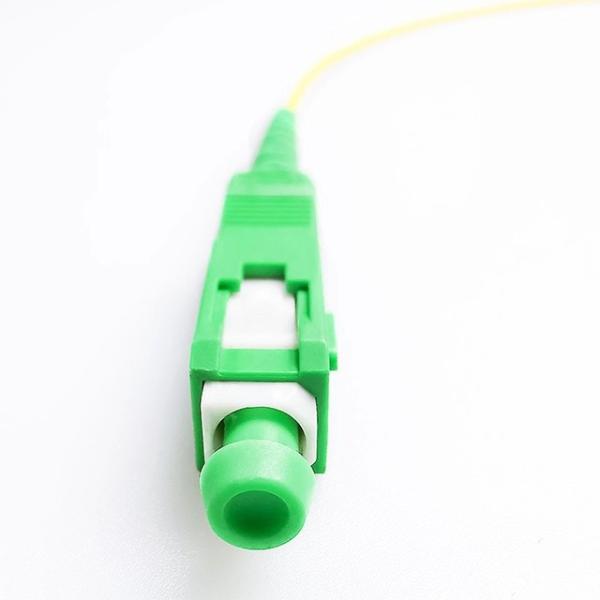

0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
Model Number :
SC-SC-SX-SM-006
MOQ :
100
Packaging Details :
PE bag
Delivery Time :
3-15 days
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Cable Material :
LSZH / PVC / OFNP
Connector :
SC/UPC-SC/APC
Fiber type :
G652D / G657A / G657B
Fiber Qty :
Simplex
Cable color :
Yellow / White /Blue /Customized
Cable Length :
1M / 2M / 3M / Customized
Description

LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss

Production Introduction:

The Fiber Optic Patch Cord is a length of Fiber cable with connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. If both sides of the connector or its end-face are different, we call it hybrid patch cord. According to the transmission medium, it divides to Single Mode and Multi Mode Fiber Optic Patch Cord; According to the connector structure type, it divides FC, SC, ST, MU, D4, E2000, LC etc.; According to the polished ceramic end-face, it divides to PC, UPC and APC.

Features
♦ In line with Telcordia GR-326-CORE standard
♦ Low insertion loss,high return loss,high reliability
♦ Good repeatability,interchangeability
♦ Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,
10G fiber,Low Smoke and Zero Halogen can be chose.

Application
♦ Fiber optic communcation system;
♦ Fiber optic data transmission;
♦ LAN , CATV ;
♦ Fiber optic testing system.

Ordering Information
For Example: FC/PC-FC/PC-SM-SX-φ3.0-3M
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type: Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Product Structure:“DX”means Duplex,“SX”means Simplex
Fiber Diameter: φ3.0mm,φ2.0mm,φ0.9mm
Cable Length:1,2,3meter or customized.
Cable Type:PVC,LSZH,OM3,OFN

Specification:

MODEL NO
Fiber Optic Patch Cord
Fiber Type
Single Mode G652D (G657A Negotiable)
Cable Assembilies
Simplex
Jacket Material
PVC(LSZH Negotiable)
Cable Diameter (mm)
2.0mm
Connector Type
SC
End Face
APC
Working Wavelength (nm)
1310/1550
Insertion Loss (dB)
≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)
UPC ≥55dB APC ≥60dB
Exchangeability
≤0.2dB
Operating Temperature(℃)
-40～85
Storage Temperature(℃)
-40～85

0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss

0.9 2.0 3.0mm LSZH Fiber Optic Patch Cable SC / APC Simplex SM Low Insertion Loss
