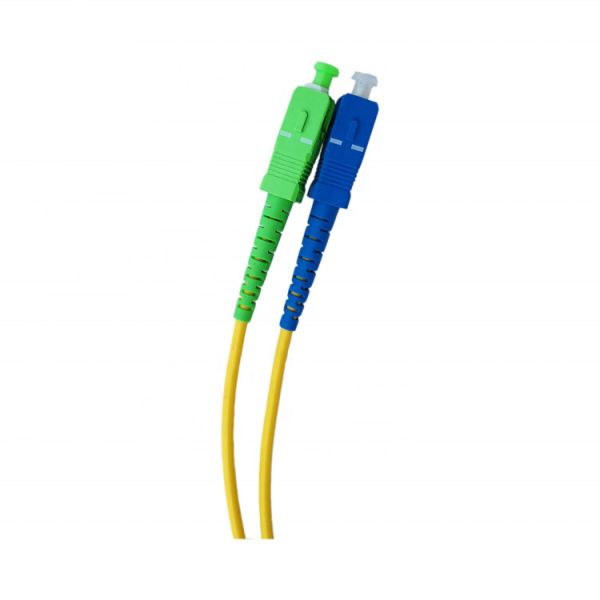

SX SM 0.9mm Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable
SX SM 0.9mm Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable
SX SM 0.9mm Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable
SX SM 0.9mm Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable
SX SM 0.9mm Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable
SX SM 0.9mm Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable
Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
Model Number :
SC-SC-SX-SM-008
MOQ :
100
Packaging Details :
PE bag
Delivery Time :
3-15 days
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Cable Material :
LSZH / PVC / OFNP
Connector :
SC/UPC-SC/APC
Fiber type :
G652D / G657A / G657B
Fiber Qty :
Simplex
Cable color :
Yellow / White /Blue /Customized
Cable Length :
1M / 2M / 3M / Customized
Description

SX SM Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable

Features
♦ In line with Telcordia GR-326-CORE standard
♦ Low insertion loss,high return loss,high reliability
♦ Good repeatability,interchangeability
♦ Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,
10G fiber,Low Smoke and Zero Halogen can be chose.

Application

  1. Cabling system, ODF
  2. Optical fiber communication systems
  3. Optical fiber data transmission
  4. Telecom net
  5. Optical fiber sensor
  6. Optical fiber test equipment
  7. Optical fiber communication system
  8. FTTH, LAN,PON & Optical CATV

Specification:

Characteristic SM , MM
Connector type FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm) 0.9,2.0,3.0
Polishing grade SM PC MM PC UPC APC
Insertion loss ≤0.3dB ≤0.4dB ≤0.2dB ≤0.3dB
Return loss ≥40dB ≥50dB ≥65dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Operation temperature -40~+80

Ordering Information
For Example: FC/PC-FC/PC-SM-SX-φ3.0-3M
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type: Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Product Structure:“DX”means Duplex,“SX”means Simplex
Fiber Diameter: φ3.0mm,φ2.0mm,φ0.9mm
Cable Length:1,2,3meter or customized.
Cable Type:PVC,LSZH,OM3,OFN

SX SM 0.9mm Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable

SX SM 0.9mm Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable
