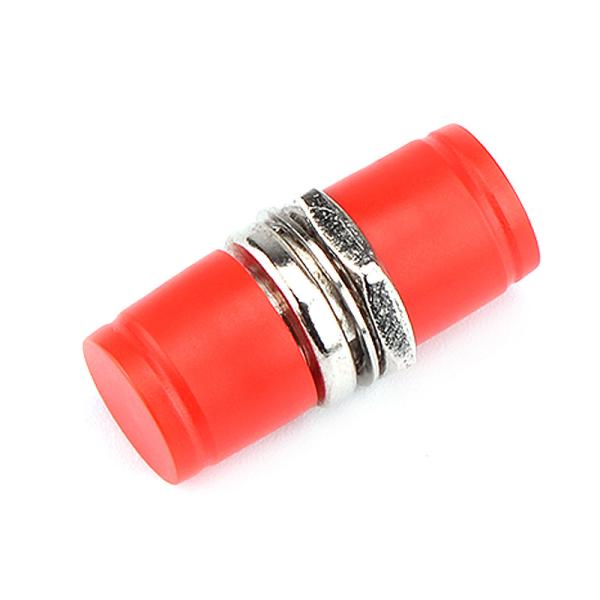

Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type
Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type
Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type
Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type
Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type
Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type
Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
Model Number :
FC Adapter
MOQ :
100
Packaging Details :
Plastic Box
Delivery Time :
5-7 days
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
4.5 MIllion PCS / Month
Description

Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type

Description
Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomerati-
on technic to ensure the best quality,high intensity and stability.

Features
♦ Low insertion loss;
♦ Good repeatability and interchangeability;
♦ Good environmental stability.

Application
Optical fiber communcation network,data transmission,
test equitments,LAN,CATV.

Ordering Information
For Example: LC-PC-SM-DX-no ear type-Plastic
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type : Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Structure / Material :“DX”means Duplex,“SX”means Simplex;
with ear type, no ear type;
copper alloy,Zinc alloy, Plastic.

Specification

Type
FC to FC
Mode
Single mode
Fiber Counts
Simplex
Durability
≤0.1dB
Insertion Loss
≤0.2dB
Working Temperature
-25~70°C
Operating Performance
FC Single Mode & Multi Mode
PC
APC
Insertion Loss (dB)
< 0.2
< 0.2
Durability (500 Mating) (dB)
< 0.1
< 0.1
Operation Temperature (°C)
-40 to 80
-40 to 80
Retention Force (N)
200-600
200-600
Tensile Strength (kgf)
10
10
Housing Material
Metal
Metal
Mounting Style
D Mount
D Mount
Sleeve Alignment Material
Ceramic (Grade A)
Ceramic (Grade A)
Housing Color
Red/Black
Green

Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type

Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type

Red Small D Optical Fiber Adapter FC Singlemode UPC Round Type
