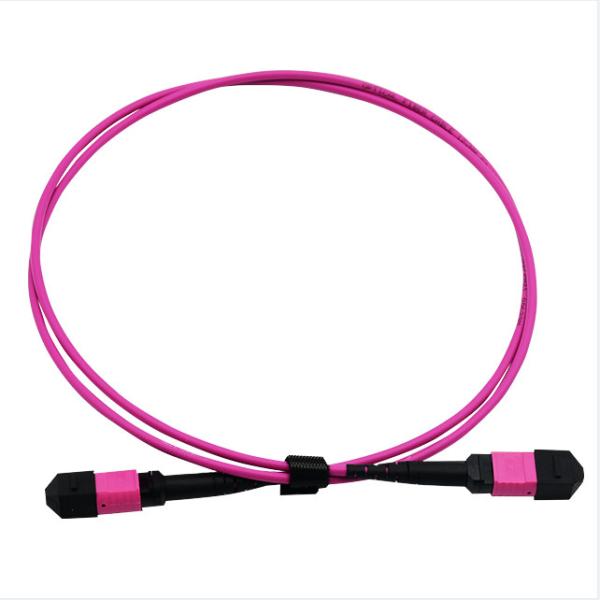

MPO MPT Multi Mode Fiber Optic Patch Cord 12 Core
MPO MPT Multi Mode Fiber Optic Patch Cord 12 Core
MPO MPT Multi Mode Fiber Optic Patch Cord 12 Core
MPO MPT Multi Mode Fiber Optic Patch Cord 12 Core
Specifications
Brand Name :
CY COM
Model Number :
MPO-MPO
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Product Name :
Fiber Optic Patch Cord
Cable Color :
Purple / Violet / Orange
Cable Materia :
LSZH / OFNP / PVC
Cable Shape :
Round / Ribbon
Polarity :
A/B/C
Connector Type :
Female /Male
Description

high quality MPO MPT Multi mode Fiber optic patch cord

12core MTP to MTP Truck Cable Mutilmode MM MPO Patch Cord Purple Violet Cable

MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.

Features:

1. Insertion loss type available in Standard, Elite / Low Loss
2. Fiber count available in 6, 8, 12, and 24
3. MTP/MPO connector type available in Male and Female
4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
5. Fanout length available in 0.5m, 1m, etc.
6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
8. Factory terminated & tested with guaranteed quality
9. High density to dramatically save space

Applications:

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV

MTP / MPO Specification:

Type Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm

Production Equipment :

MPO MPT Multi Mode Fiber Optic Patch Cord 12 Core

MPO MPT Multi Mode Fiber Optic Patch Cord 12 Core

MPO MPT Multi Mode Fiber Optic Patch Cord 12 CoreMPO MPT Multi Mode Fiber Optic Patch Cord 12 Core

MPO MPT Multi Mode Fiber Optic Patch Cord 12 Core
