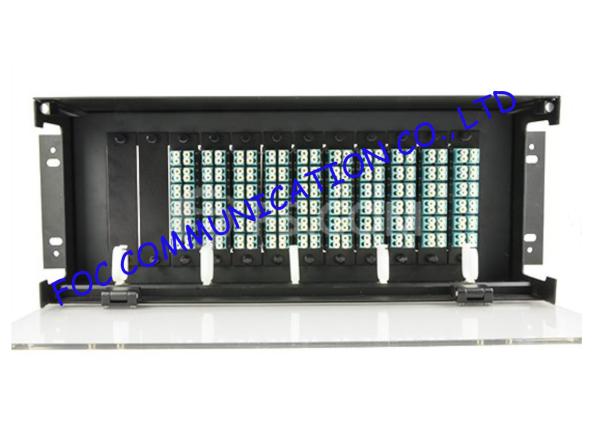

4U Rack Mount LGX Chassis to hold 12 pieces of LGX Splitter Cassette

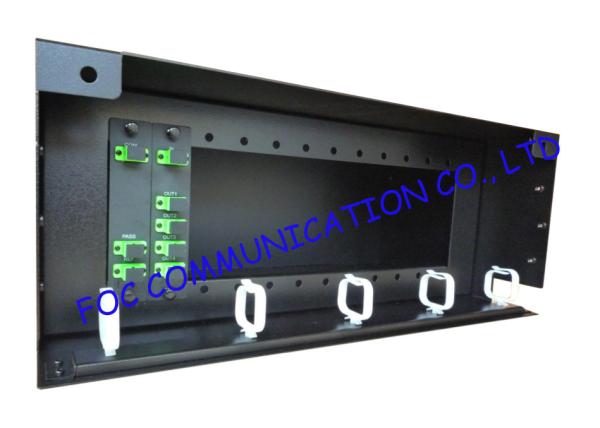

LGX Splitter Panel 4U 19”Rack Mount is an integrated unit for fiber management with a protection function, to hold 12 pieces of LGX cassettes.

With this ODF-system fused-, PLC- splitters and FWDM filters are well organized for easy access and protected from dust and debris. The sub-box can house up to a 1×8 splitter and the chassis can house up to 12 sub-boxes. The Chassis fits in 19″ or ETSI rack mounts.

Features

Provide higher patch field density in fewer rack units saving valuable space

Assures flexibility and ease of network deployment and moves, adds, and changes

Provides a complete system solution for connectivity

Mount to standard EIA 19 " rack rails

Steel construction with Black Powder coating

Ensure signal integrity, proper cable routing, bend radius control and cable protection

Up to 12 LGX components

Up to 12 x 24 fibre MPO/MTP LGX Cassettes

Multiple adaptor options available

Fully integrated fibre management

Splicing option available

Flat pack for easy shipment

Patch cord exit retrofit cable management available

30mm bend radius maintained throughout

Individually labeled ports

Accepts loose tube, distribution cable and MPO/MTP Trunk Cable

RoHS compliant

Fits standard 19"

Rear cable management bar as standard

Applications

Data centers, premise installations, telecommunication networks

Ethernet, fibre channel, ATM, LAN, MAN and WAN

Data communication

Indoor applications

Optical Specifications

Note: All the data above does not include connectors.

Ordering Information

We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
