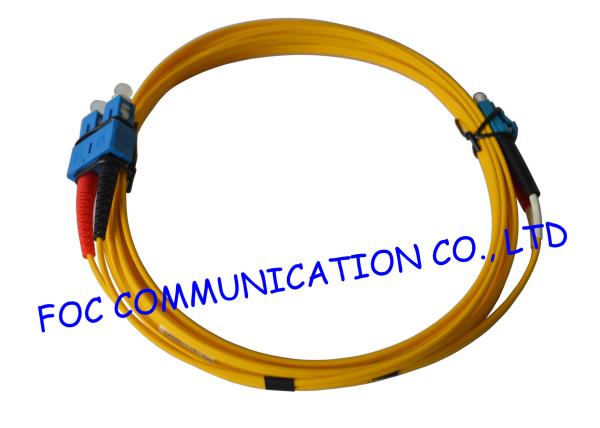

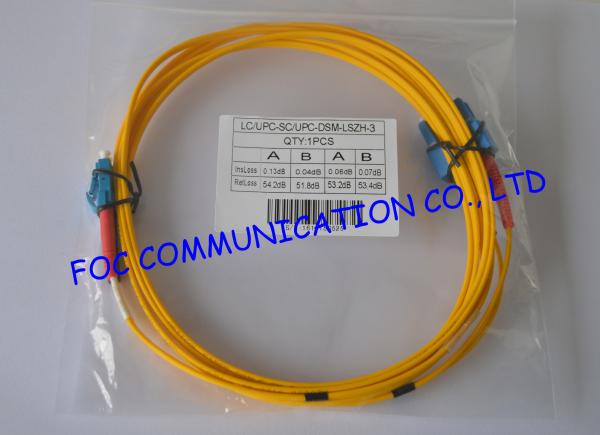

SC To LC G.652D SM Duplex Fiber Optic Patch Cables Indoor Type With LSZH Jacket
SC To LC G.652D SM Duplex Fiber Optic Patch Cables Indoor Type With LSZH Jacket
SC To LC G.652D SM Duplex Fiber Optic Patch Cables Indoor Type With LSZH Jacket
SC To LC G.652D SM Duplex Fiber Optic Patch Cables Indoor Type With LSZH Jacket
Specifications
Brand Name :
FOCABLE
Model Number :
SM Duplex Fiber Patch Cord SC-LC
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM
Cable Material :
LSZH
Cable Diameter :
2.0mm
Connector :
SC/UPC-LC/UPC
Cores :
Duplex
Length :
5M
Description

SC To LC G.652D SM Duplex Fiber Optic Patch Cables Indoor Type With LSZH Jacket

FOC COMMUNICATION CO., LTD offer a complete selection of SC-LC fiber optic cable assemblies, these SC-LC fiber optic patch cables including single-mode and multimode types in simplex and duplex versions. Cables jacket can be Riser rated or Plenum rated, with LSZH cable and PVC options, and are all RoHS compliant cables. We supply related standard and custom made fiber optic cables with competitive prices and fast delivery.

G.652D SM duplex indoor type SC/UPC-LC/UPC patch cable with LSZH jacket cable is used to connect the device to another for signal routing. It is composed of a fiber optic cable assembled with various connectors on both ends. We FOC COMMUNICATION CO., LTD provide all types of fiber optic patch cords including single mode, multimode, simplex, duplex, multi core patch cords, armored patch cords and waterproof patch cords. The main connectors are FC, SC, LC, ST, MU, MTRJ, E2000, MPO, MTP and so on.

Key Features

100% Optically Inspected and Tested for Insertion Loss

Pull Proof Jacket

ROHS Compliant
Single mode duplex fiber optic cable
High precision ceramic fiber optic ferrule
100% optically tested to ensure high performance
Cable color yellow

Ordering information

1.Connector one, LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO,

Connector two LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.
2.Ferrule interface type: UPC,APC
3.Fiber type; singlemode(G652,G655),MULTIMODE(50/125, 62.5/125),OM3
4.Fiber cable diameter(mm):Φ0.9, Φ2.0 ,Φ3.0
5.Cable length: Customized length

Technical Specifications

Fiber Mode: Single-mode 9/125
Insertion Loss: 0.2dB (Typical), 0.3dB (Max UPC)
Back Reflection: -50dB (UPC), -65dB (APC)
Operating Temperature: -20°C to +70°C
Cable Diameter: 2mm

Fiber Optic Patchkabel, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
