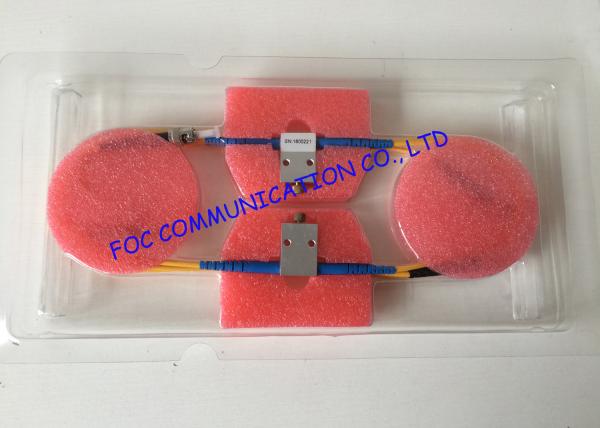

Wideband ST SM fiber optic variable attenuator 1310 / 1550nm Wide Attenuation Value
Wideband ST SM fiber optic variable attenuator 1310 / 1550nm Wide Attenuation Value
Wideband ST SM fiber optic variable attenuator 1310 / 1550nm Wide Attenuation Value
Wideband ST SM fiber optic variable attenuator 1310 / 1550nm Wide Attenuation Value
Specifications
Brand Name :
FOCABLE
Model Number :
ST Inline Variable Fiber Optic Attenuator
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Packaging Details :
1PCS/PE Bag
Attenuation :
0dB to 60dB
Connector :
ST
Type :
Inline variable attenuator
Mode :
Singlemode
Description

Fiber Optic Attenuator Inline Variable ST SM 1310 / 1550nm Wide Attenuation Value

Inline variable fiber optic attenuator provide a compact and simple means for manually adjusting optical signals in fiber optic systems and test sets. When mated to a standard connector, the variable attenuator connector causes the optical signal to become attenuated by creating a variable air gap between the connector ferrules. Attenuation is adjusted by means of a self-locking screw mechanism. Available in both singlemode and multimode fiber.

Variable optical attenuator is an all fiber device. It features low insertion loss, large attenuation range, small package and it is easy to operate. By turning the high precision screw, attenuation can be set to from 0dB to 60dB, and is continually adjustable. Its compact design is excellent for mounting on panel. Specific type of connector can be built on each end.

This Singlemode In-line variable Optical Attenuator is integrated into a standard connectorized fiber optic jumper cable. Cable is terminated with ST, FC, SC, LC, SC/APC, FC/APC, or LC/APC optical connector and available in the lengths up to 50 meters.

Applications

Digital, Hybrid and AM-Video Systems

Local Area Networks

CATV Systems

EDFA Transmission Systems

Optical communication system test

Fiber component test

Optics lab use

Features

High adjustable attenuation

All Fiber Construction

In-line Configuration

Excellent Environmental & Mechanical Stability

Wideband

Loss original loss

Compact configuration

Large attenuation range

Specifications

Parameter Type
1310nm 1550nm
Operating Wavelength(nm) 1310 1550
Operating Bandwidth(nm) ±40 ±40
Attenuation Range(dB) 0～60 0～60
Original Loss(dB) 0.6 0.2
Adjustment Resolution(dB) ＜0.2
Return Loss(dB) ≥50
Operating Temperature(℃) -40～+70
Storage Temperature(℃) -40～+85

*The above specification is without connector

Ordering Information

Side 1 Side 2 Fiber Cable Size Wavelength Jacket Length Adjustment
SC SC SM 9/125um 0.9mm 1. 1310nm 1. PVC Customized
  1. hand
  2. screw
ST ST MM 50/125um 2.0mm 2. 1550nm 2. LSZH
FC FC MM 62.5/125 3.0mm 3. 1310/1550nm
LC LC
DIN DIN
D4 D4
MU MU
SC/APC SC/APC
FC/APC FC/APC
LC/APC LC/APC
DIN/APC DIN/APC

Wideband ST SM fiber optic variable attenuator 1310 / 1550nm Wide Attenuation Value

Fiber Optic Attenuator, Optical Fiber Attenuator, Fiber Attenuators
