LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection
LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection
LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection
LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection
Specifications
Brand Name :
FOCABLE
Model Number :
LC-ST Male to Female Fiber Optic Adapter
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
100PCS
Supply Ability :
90000PCS/Month
Packaging Details :
50PCS/Blister Box
Sleeve material :
Zirconia Ceramic Sleeve
Adapter :
LC-ST
Cores :
Simplex
Material :
Plastic and Metal
Cap Color :
White
Mode :
Singlemode
Description

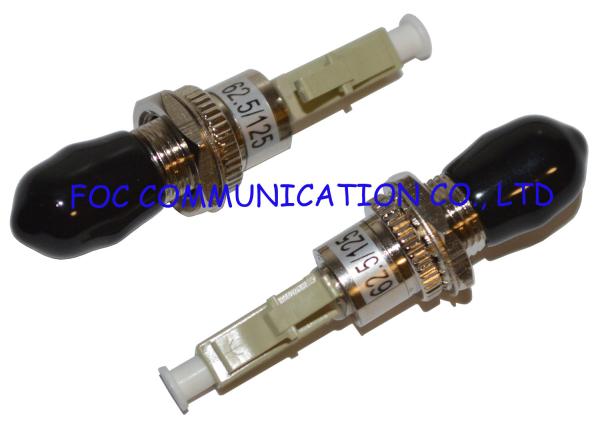

LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection

LC male-ST female fiber optic adapter is specially designed to incorporate the Small Form Factor LC into ST configured environment. The compact design of LC male-ST female fiber adapter enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.

Male to female fiber optic adaptors allow users to couple from one connector type to another type. These adaptors are comprised of a polymer/metal outer body and their inner assembly fitted with a precision alignment mechanism. They are precisely made and manufactured to demanded specification. Sleeves and a precision molded polymer housing provides consistent long-tem mechanical and optical performance.

LC-ST fiber optic coupler male to female is also used to connect fiber-optic cables together. It offers a solution for hybrid applications where the two different kinds of fiber optic connectors or cable assemblies need to be connected with each other. The main function of hybrid fiber optic adapter is for connection between various different fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.

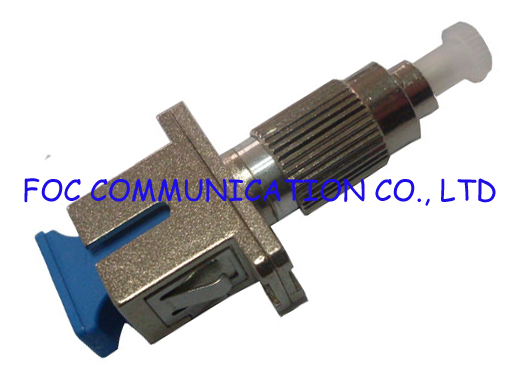

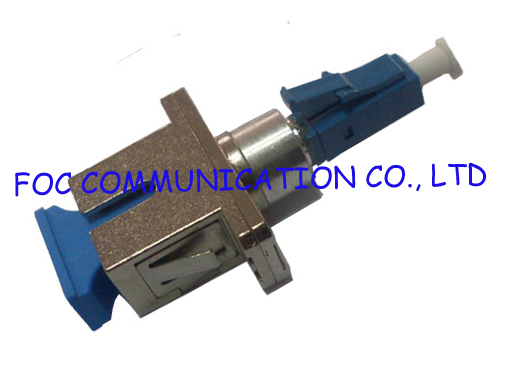

Male to female fiber optic adapter provides reliable solution for fiber connections and meet the market requirement. SC-FC, SC-LC, FC-ST, E2000-SC, and other types are all available.

Features

Used for connecting and coupling of the fiber optical connector

Low insertion loss and high return loss

High precision mechanical dimensions

High performance and reliability

Applications

Optical Distribution Frame
Fiber Optic Instruments

Fiber Optic Communication System Interface
Fiber Instrument

Fiber LAN, Wide Area Networks

Specifications

Parameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time >1000 >1000 >1000
Operating Temperature °C -40~75 -40~75 -40~75
Storage Temperature °C -45~85 -45~85 -45~85
Plug and Unplug force (g/f) 200—600
Spec Simplex and Duplex

Ordering Information

Cores Count

SX= Simplex, DX=Duplex, Quad

Type

UPC, APC

Material

Plastic, Metal

Connector Type

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, X=Others

LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection

LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection

Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
