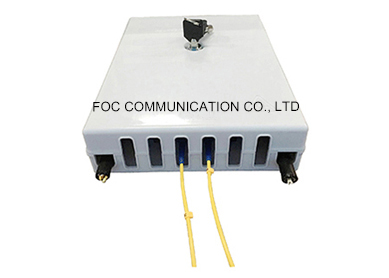

Outdoor Fiber Optic Termination Box Enclosure 24 Fiber For Telecommunication Networks
Outdoor Fiber Optic Termination Box Enclosure 24 Fiber For Telecommunication Networks
Specifications
Brand Name :
FOCABLE
Model Number :
OTB-R24
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
5PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Mount :
Wall mounted, pole mounted
Material :
ABS plastic
Port :
12,24,32,48,72Port
Connector :
SC, FC, LC, ST, E2000
Description

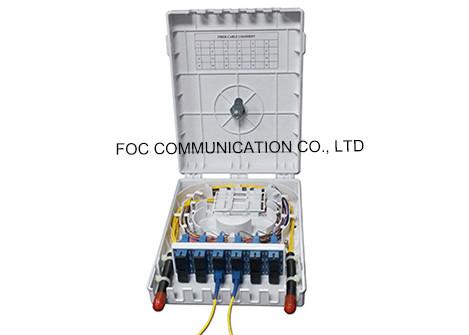

Optical Fiber Enclosure Outdoor 24 Fiber Fully Loaded With SC Adapters And Pigtails

Optical fiber enclosure is designed to enable the fiber network to be installed and connected in the short possible time. All the components can be pre-assembled and easy to be installed together. And it is a perfect solution for optical fiber installations and management. It is suitable for SC splitters 1:8 and 1:16 type, 8cores or 16cores.

Descriptions
With the function of mechanical splice, fusion splice, light splitting, wiring distributions
Provides solid protection and management for the FTTx network building

Applicable in FTTH project
Suitable for indoor, basement, room and building's outer walls application
Used as a termination point for the feeder cable to connector with drop cable

Features

Total enclosed structure, perfect peformance

Industry Standard User Interface, be made of high impact plastic

Can accommodate 1pc PLC 1:16 or 2pcs PLC 1:8 steel tube type splitter

Anti-UV, Ultra violet resistant and rainfall resistant.

Up to 24FTTH drops cable

Wall and pole mountable.

Easy maintenance and installation

Application

Data communications Networks

Local Area Networks, Wide Area Networks

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Specifications

Dimension(mm): 246.5x193x53.2mm
Material: ABS plasitc
Adapter port: 24pcs SC simplex
Max. capacity: 24 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 24 fibers
Color: white
