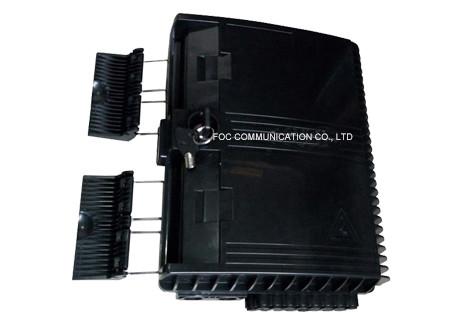

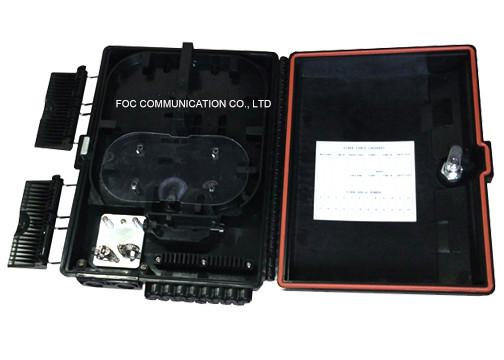

FTTH Fiber Optic Termination Box 16 Fiber Loaded With PLC Splitter Blockless Type
FTTH Fiber Optic Termination Box 16 Fiber Loaded With PLC Splitter Blockless Type
FTTH Fiber Optic Termination Box 16 Fiber Loaded With PLC Splitter Blockless Type
FTTH Fiber Optic Termination Box 16 Fiber Loaded With PLC Splitter Blockless Type
Specifications
Brand Name :
FOCABLE
Model Number :
OTB-0216-D2
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Mount :
Wall Mounted, Pole Mounted
Material :
ABS Plastic Material
Port :
12,24,32,48,72Port
Connector :
SC, FC, LC, ST, E2000
Description

FTTH Fiber Optic Termination Box 16 Fiber Loaded With PLC Splitter Blockless Type

The outdoor wall and pole mount FTTH fiber optic termination boxes are environmentally sealed enclosures for splitting and redistributing optical power from feeder fibers to distribution fibers for FTTX networks. They are also designed for fiber splicing, termination, and management. Each box has universal adapter plug-ins and splitter mounts.

Fiber optic terminal box is used in the end termination of residential building, to fix and splice with pigtails. It is suitable for outdoor wall mount and pole mount. And it can be spliced and connected by many ways and easy to manage.

Features

Available for SC, LC adapters

Made of high quality plastic material, waterproof and dustproof function

UV resistant and anti-crush

Suitable for outdoor wall-mount and pole mount

Store surplus fiber inside, easy for operation

Flame retardant ABS material

The base and cover of the box adopts self-clip method, easy to open and close

Designed as seal structure to prevent dust from entering

Applications

Used for FTTH, FTTD solutions

Used for wall-mounted and rack-mounted applications

Specifications
Dimension(mm): 304.1x236.5x104.3mm
Material: ABS plastic
Adapter port: 16pcs SC simplex
Max. capacity: 16 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 16 fibers
Color: Black
Can load 1pc PLC 1:16 steel tube type splitter
2pcs cable entry ports Φ8mm
16pcs FTTH drop cable ports 3*2mm with cable fixing accessory
With cable guider inside of box bottom

FTTH Fiber Optic Termination Box 16 Fiber Loaded With PLC Splitter Blockless Type

FTTH Fiber Optic Termination Box 16 Fiber Loaded With PLC Splitter Blockless Type

Fiber Optic Patch Panel, Optical Fiber Patch Panel, ODF, Fiber Optic Distribution Frame, Fiber Termination Box, Optical Termination Box, FTTH Enclosure, FTTH Box, FTTX fiber box
