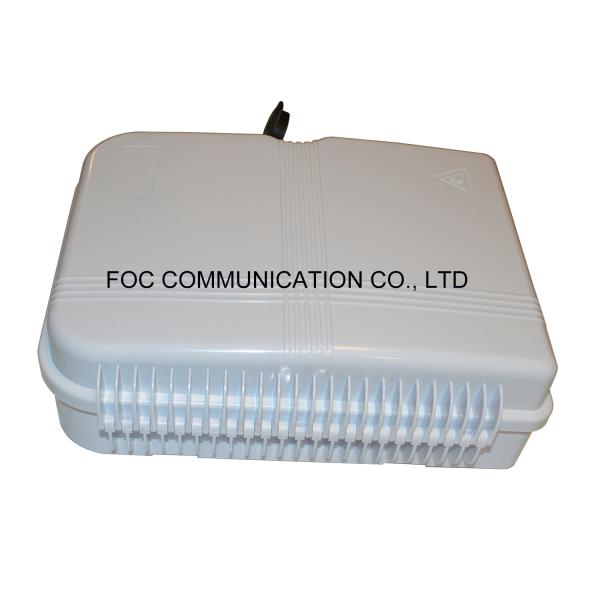

Fiber Splitter Termination Box 24 Core Fiber Optic Patch Panel With 1x16 PLC Blockless
Fiber Splitter Termination Box 24 Core Fiber Optic Patch Panel With 1x16 PLC Blockless
Fiber Splitter Termination Box 24 Core Fiber Optic Patch Panel With 1x16 PLC Blockless
Fiber Splitter Termination Box 24 Core Fiber Optic Patch Panel With 1x16 PLC Blockless
Specifications
Brand Name :
FOCABLE
Model Number :
OTB-0216-E
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Mount type :
Wall Mount, Pole Mount
Material :
ABS Plastic
Port :
8, 12, 16, 24, 32, 48, 72, 96 Port
Connector :
SC, FC, LC, ST, E2000
Description

Fiber Splitter Termination Box 24 Core Pre-oaded With 1x16 PLC Blockless

The fiber optic termination box (OTB) is designed for termination of fibers outside premises in FTTx applications. The box terminates and protects fiber or duct connections for the final drop cabling. It can also be used as a multi-­purpose outdoor fiber optic wall outlet. The box is suitable for both air blown fiber installations and drop cables.

Features
Unique integration for both air-blown fiber and drop cables
Cabling entrance behind wall or bottom
UV-protected
Water & dust protected, IP 65 outdoor using
Discrete aesthetic design
Suitable for 24xSC simplex or 24xLC duplex connectors,

Features

Can accommodate 1x2,1x4,1x8,1x16 PLC splitter.

Engineered fiber routing protects bending radius throughout the unit to ensure signal integrity

Enough work space for efficient splicing or adaptor patching

Simply and clearly arranged incoming and outgoing cable management

Convenient access for installation, maintenance and subsequent termination

Higher fiber count capacity box is available upon request

Application

CATV Networks

Data communications Networks

Widely used in FTTH access network.

Local Area Networks, Wide Area Networks

Telecommunication Networks

Specifications

Working Temperature: -40℃～+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)

Description OTB-0216-E
Dimensions(W×D×H) 313.4x274.3x114.1mm
Splice capacity Max. 24 fibers
Cable port In: 2-port/Out:24-port
Cable dia. For FTTH drop cable
Max. qty of splice tray 1pc
Max. capacity of splice tray 24 fibers
Color Ivory/White
Main body material Plastic(ABS)
Installation type Wall mounting and pole mounting

Fiber Splitter Termination Box 24 Core Fiber Optic Patch Panel With 1x16 PLC Blockless

Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box, Fiber Terminal Box, Fiber Distribution Box
