Indoor / Outdoor Fiber Optic Termination Box High Resistance With 96 Core
Indoor / Outdoor Fiber Optic Termination Box High Resistance With 96 Core
Indoor / Outdoor Fiber Optic Termination Box High Resistance With 96 Core
Indoor / Outdoor Fiber Optic Termination Box High Resistance With 96 Core
Specifications
Brand Name :
FOCABLE
Model Number :
OTB-S96-A
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Mount type :
Wall Mount, Pole Mount
Material :
ABS Plastic
Port :
12, 24, 32, 48, 72, 96 Port
Connector :
SC, FC, LC, ST, E2000
Description

Splitter Fiber Optic Termination Box 96 Core Indoor And Outdoor Available High Resistance

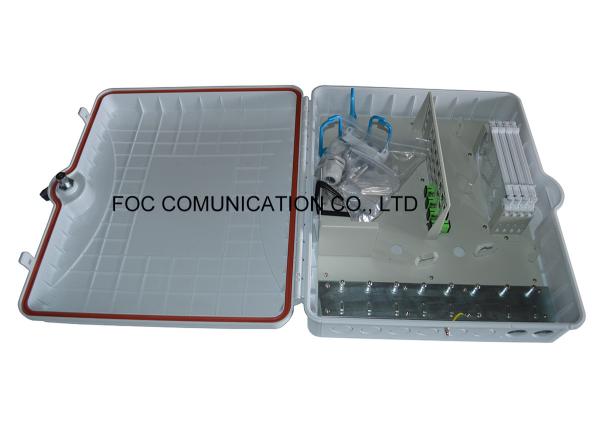

Splitter fiber termination box is used for fiber optical cable splicing, distribution, connection and protection. It is made by ABS plastic.

Splitter fiber termination Box comes in a compact and easy to use design. This model is applicable for wall-mount, pole mount, Indoor or outdoor rails installation to house fiber termination and splicing.

Splitter fiber termination box has a multi-layer design that allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter unit and also allows for pigtail splicing of both distribution and drop cables.

Features

Fully closed structure, simple and beautiful shape

Adopted high quality ABS material, with a good property of dustproof, waterproof, moisture proof, achieved IP65 Grade

Suitable for SC and LC duplex adapter

Flexible splice tray which is convenient for operation and maintaining

Application: Wall and pole mountable(accessories optional), suitable for indoor and outdoor use

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Application

Data communications Networks

Local Area Networks, Wide Area Networks

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Specifications

Working Temperature: -40℃～+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)

Model Adapter port

Dimension(mm)

W*H*D

 Splitter space
OTB-S96 96 397 ×467×125 No
OTB-S96-A 72 Max. 8pcs 1:8 or 1pc 1:64 box type splitter
OTB-S96-B 72
