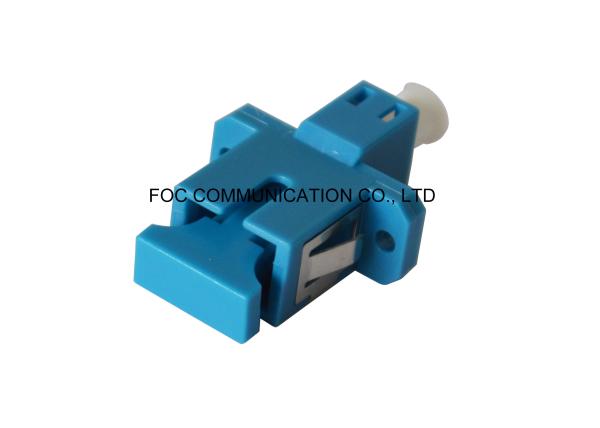

LC-SC Hybrid Fiber Optic Adapter , Singlemode Fiber Optic Connector Adapters
LC-SC Hybrid Fiber Optic Adapter , Singlemode Fiber Optic Connector Adapters
LC-SC Hybrid Fiber Optic Adapter , Singlemode Fiber Optic Connector Adapters
LC-SC Hybrid Fiber Optic Adapter , Singlemode Fiber Optic Connector Adapters
Specifications
Brand Name :
FOCABLE
Model Number :
LC-SC Fiber Optic Adapter
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
100PCS
Supply Ability :
90000PCS/Month
Packaging Details :
50PCS/Blister Box
Sleeve material :
Zirconia Ceramic Sleeve
Adapter :
LC-SC
Cores :
Simplex
Material :
Plastic
Cap Color :
White
Mode :
Singlemode
Description

LC-SC Hybrid Fiber Adapter , Singlemode Fiber Optic Connector Adapters

Hybrid fiber optic adapter LC-SC provides the connection between the fiber optic patch cord or pigtails. Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).

The LC - SC Hybrid Adapter offers a solution for any hybrid applications where SC interconnect systems are incorporated into LC system configurations or vice versa.

The adapter’s high-precision sleeve enables reliable ferrule mating of the SC and LC ferrule diameters, ensuring low insertion and return loss.

APPLICATIONS

Network environments

Telecommunications networks

Metro networks

FEATURES

High-precision sleeve

Compact design

High performance

Specification:

Insertion Lose≤0.3 dB

Interchangeability≤0.2 dB

Repeatability(500 times) ≤0.2 dB

Operating Temperature -10 - +75℃

Storage Temperature -40 - +85℃

Ordering Information

Interface

Adapter Type

Color

Fiber Type

Cores

Sleeve

P-PC

FC-FC

B-Blue

SM

Simplex

Zirconia

A-APC

SC-SC

B-Beige

MM 50/125um

Duplex

Bronze

LC-LC

G-Green

MM 62.5/125um

4cores

ST-ST

X-Customized

MM OM3

MU-MU

MTRJ-MTRJ

E2000-E2000

Hyrbid

LC-SC Hybrid Fiber Optic Adapter , Singlemode Fiber Optic Connector Adapters

Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
