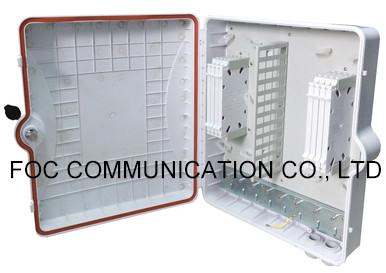

FTTX Fiber Optic Terminal Box 96 Core Wall Mount And Pole Mount Application

FTTX fiber termination box is used for fiber optical cable splicing, distribution, connection and protection. It is made by ABS plastic.

FTTX fiber termination Box comes in a compact and easy to use design. This model is applicable for wall-mount, pole mount, Indoor or outdoor rails installation to house fiber termination and splicing.

FTTX fiber termination box has a multi-layer design that allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter unit and also allows for pigtail splicing of both distribution and drop cables.

Features

OTB-S96

Different adapter panel, SC, LC, ST, FC ...

96 adapter port

Max. 8pcs splice tray for 192 fiber splicing (splice tray in both side, each side 4pcs)

Max. 8pcs PG21 cable port

Waterproof IP65

Wall mounted or pole mounted application

OTB-S96-A

Different adapter panel, SC, LC, ST, FC ...

Support cable entry without cutting

Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter

72 adapter port

Max.4pcs splice tray for 96 fiber splicing (splice tray in one side)

Max. 6pcs PG21 cable port + 2 rubber cable port

Waterproof IP65

Wall mounted or pole mounted application

OTB-S96-B

Different adapter panel, SC, LC, ST, FC ...

Support cable entry without cutting

Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter

Support FTTH drop cable entry/exist

72 adapter port

2pcs splice tray for 48 fiber splicing (splice tray in one side)

Max. 6pcs PG21 cable port + 2 rubber cable port

Waterproof IP65

Wall mounted or pole mounted application

Application

Data communications Networks

Local Area Networks, Wide Area Networks

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Specifications

Working Temperature: -40℃～+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)

OTB-S96

​ OTB-S96-A

OTB-S96-B
