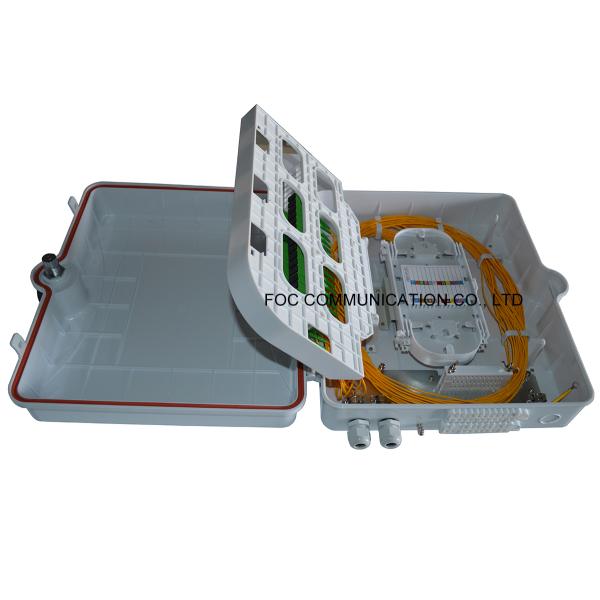

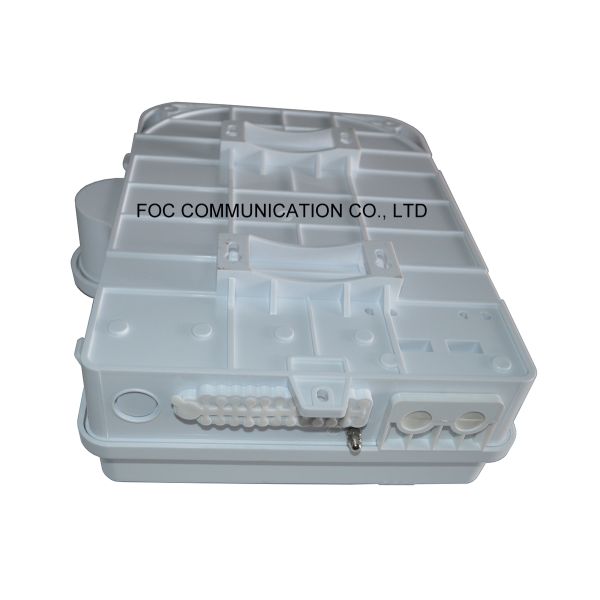

White Fiber Optic Cable Termination Boxes ABS Moduel PLC Splitter 1x32
White Fiber Optic Cable Termination Boxes ABS Moduel PLC Splitter 1x32
White Fiber Optic Cable Termination Boxes ABS Moduel PLC Splitter 1x32
White Fiber Optic Cable Termination Boxes ABS Moduel PLC Splitter 1x32
Specifications
Brand Name :
FOCABLE
Model Number :
OTB-S48-A
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Mount type :
Wall Mount, Pole Mount
Material :
ABS Plastic
Port :
12, 24, 32, 48, 72, 96 Port
Connector :
SC, FC, LC, ST, E2000
Description

Fiber Splitter Termination Box 48 Core Loaded With ABS Moduel PLC Splitter 1x32

Optical Termination Box (OTB) is mounted to inside and outside wall of building or pole to distribute and connect optical cable for distribution of subscriber.

Optical termination boxes are applicable in FTTH project and suitable for building's outer walls application; They can distribute cables after installing splitters and also can draw out room fiber optic cables by direct or cross-connections. They are with the function of mechanical splice, fusion splice, light splitting, wiring distributions etc. PLC Splitters can be pre-loaded with in the box as per customer's request.

Features

Can accommodate 1x32, 2x32 PLC splitter.

Engineered fiber routing protects bending radius throughout the unit to ensure signal integrity

Enough work space for efficient splicing or adaptor patching

Simply and clearly arranged incoming and outgoing cable management

Convenient access for installation, maintenance and subsequent termination

Higher fiber count capacity box is available upon request

Application

Widely used in FTTH access network.

Local Area Networks, Wide Area Networks

Telecommunication Networks

CATV Networks

Data communications Networks

Specifications

Working Temperature: -40℃～+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)

Description OTB-S48-A
Dimensions(W×D×H) 380*355.8*140.5mm
Splice capacity Max. 48 cores
Cable port In: 2-port/Out:48-port
Cable dia. For FTTH drop cable
Color Ivory/White
Main body material Plastic(ABS)
Installation type Wall mounting and pole mounting

White Fiber Optic Cable Termination Boxes ABS Moduel PLC Splitter 1x32

White Fiber Optic Cable Termination Boxes ABS Moduel PLC Splitter 1x32

Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box, Fiber Terminal Box, Fiber Distribution Box
