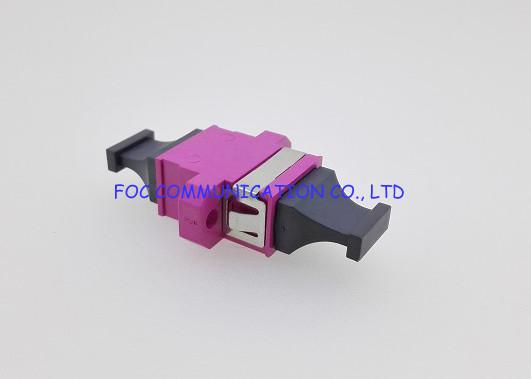

SM MM Male / Female MPO / MTP Fiber Network Adapter For FTTH Networks
SM MM Male / Female MPO / MTP Fiber Network Adapter For FTTH Networks
Specifications
Brand Name :
FOCABLE
Model Number :
MPO Fiber Optic Adapters
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
100PCS
Supply Ability :
90000PCS/Month
Packaging Details :
50PCS/Blister Box
Sleeve material :
Bronze Sleeve, Zirconia Ceramic Sleeve
Adapter :
FC, SC, ST, LC, MTRJ, MPO, E2000
Cores :
Simplex
Material :
Plastic
Cap Color :
Black
Mode :
Singlemode, Multimode
Description

MPO Fiber Optic Adapter SM and MM Available For FTTH Networks

Descriptions
MPO/MTP adaptor provides alignment for a male and female MPO/MTP connector, its simple to use locking thread mechanism preventing accidental disconnection, this provides a very secure connection. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colours and with options for flange or flangeless body.

Features
Applied to 4-24 core SM or MM fiber connection
Two-piece type adapter can be customized opposed (UP-DOWN)key and aligned(UP-UP) key
Two-piece type adapter can be customized plastic housing and metal housing

One-piece type adapter is stable opposed(UP-DOWN) key
Plastic housing can be customized black, green, yellow, water blue, pink and other colors
Customized with flange and short flange adapter
SC-type MPO adapter compatible with SC panel
Standard shockproof spring, close to the panel installation
Comply with IEC61754-7-1, Telcordia GR-1435, ROHS standard

Specifications
Insertion Loss: ≤0.2dB
Return Loss: ≥45dB
Mating Durability: ≤0.2dB typical change, 1000 times
Operating Temperature: -40 ~ +75 ℃
Storage Temperature: -40 ~ +85 ℃
