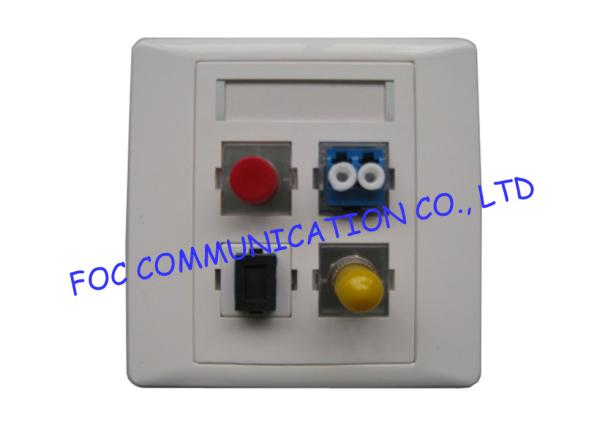

Fiber Optic Termination Box 4 Port Wall Plate Outlet FC SC LC ST Adapters
Fiber Optic Termination Box 4 Port Wall Plate Outlet FC SC LC ST Adapters
Specifications
Brand Name :
FOCABLE
Model Number :
WP-3PWH
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
5PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Mount Type :
Wall Mount
Material :
ABS or PC Plastic Material
Port :
3 Port
Connector :
SC, FC, LC, ST, E2000
Description

Fiber Optic Termination Box 4 Port Wall Plate Outlet FC SC LC ST Adapters

Fiber optic wall outlet is to achieve fiber to desktop solutions for the user terminal products, interior space design is reasonable.

The optical fiber wall plate outlet is used at home or work area to complete the access and port output of the dual-core optical fiber. It can fully meet the requirements of fiber bending radius and protect the incoming and outgoing optical fibers to provide safe protection for the core. Appropriate radius of curvature, allowing a small number of redundant optical fiber inventory, to achieve FTTD (fiber to the desktop) system applications.

Features

  • Durable ABS or PC material
  • Compact design
  • Integral fibre management
  • Ideal for data applications
  • Splice or directly terminable
  • Wall mountable
  • Designed to store a pre-terminated pigtail for connection to a mating adapter

  • Accommodates 1-4 fiber adapters (SC, FC, LC, ST)

  • Mounts to Standard Electrical Junction Boxes or wall

  • Internal Fiber routing provides bend radius control

  • Flame Retardant

  • Tool-less sliding door provides easy access for fiber connection or removal

  • Internal adapter with automatic shutter covering laser light output

Applications

  • FTTH access
  • Telecommunication
  • CATV
  • Data Communication Networks etc.

Specifications

ITEM FTTH wall plate Outlet
Output 4 Port
Adapter With 4 PCS Adapter
Suitable Fiber Type Single Core SM Fiber
Suitable SC, FC, ST, LC, SC-FC
Insertion Loss ≤0.20 dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Operation Temperature -25~+70℃
Industry Standard Bell core TA-NWT-001209
Material ABS
Dimension 86CM x 86CM
Application FTTH

Fiber Optic Wall Plate Outlet, Optical Termination Outlet, FTTH outlet plate, Fiber Optic Wall Outlet, Optical Fiber Termination Box, Fiber Optic Termination Box
