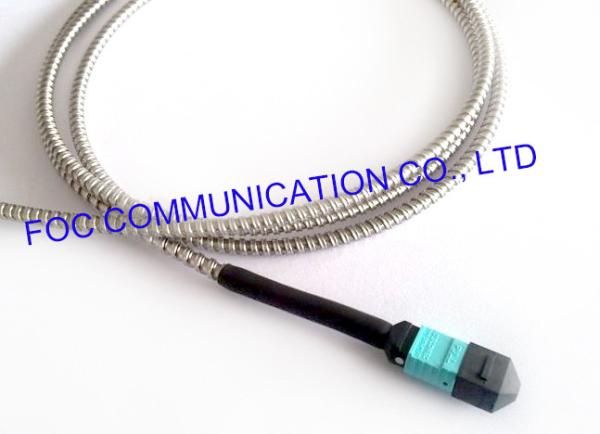

MPO Armored Multimode Fiber Optic Cable Cord OM3 MM 50/125um 12 Core
MPO Armored Multimode Fiber Optic Cable Cord OM3 MM 50/125um 12 Core
Specifications
Brand Name :
FOCABLE
Model Number :
MPO/MTP Armored OM3 12core Fiber Optic Patch Cord
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM, OM1, OM2, OM3, OM4
Cable Material :
PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter :
0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm
Connector :
SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores :
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores
Length :
1M, 2M, 3M, 5M or as per customer request
Description

MPO Armored Fiber Optic Patch Cord OM3 MM 50/125um 12 Core

We supply and Manufacture fiber optic trunk cables with multi fiber connections and custom cable assemblies. Using MTP or MPO fiber connectors. With its higher port density, MTP fiber is easier to install - just pull 1 cable with 12 fibers for one easy plug-in. Delivers big savings in installation time and cost.

MTP cables are your best choice for high density fiber networks. It's specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications. This 12 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.

For customers wanting more testing, interferometry test reports can be supplied upon request prior. MTP/MPO endface geometry, ferrule radius of curvature, fiber height and core dip are among some of the test data.


Specification

Connector A MTP Female (pinless) Connector B FC UPC
Fiber Mode OM3 50/125μm Wavelength 850/1300nm
MTP Connector IL 0.35dB Max(0.15dB Typ.) FC Connector IL ≤0.3dB
MTP Connector RL ≥20dB FC Connector RL ≥30dB
Jacket OD 3.0mm Fan-Out Diameter 2.0mm
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Cable Jacket LSZH Fiber Count 12 Fibers


Features
Easier upgradability to 40G and 100G with MPO pre-term solutions
Faster installation with pre-terminated solutions
Better quality through exhaustive design validation against TIA standards
3-flange reel and default pulling eye for easier installation
Better architectural flexibility with high-performance 0.2 dB OM4 MPO connectors
Better contamination control with Data Center ready packaging

Ordering information

Interface

Connector

Length

OD

Color of jacket

Jacket

Fiber Type

Cores

P-PC

FC-FC

1M

0.9mm

B-Black

P-PVC

SM

Simplex

U-UPC

SC-SC

3M

1.6mm

Y-Yellow

L-LSZH

MM 50/125um

Duplex

A-APC

LC-LC

5M

1.8mm

W-White

OFNR

MM 62.5/125um

4cores

ST-ST

10M

2.0mm

Customized

OFNP

MM OM3

6cores

MU-MU

Customized

3.0mm

Customized

MM OM4

8cores

MTRJ-MTRJ

Customized

12cores

E2000-E2000

24cores

OM3

Customized

Customized
