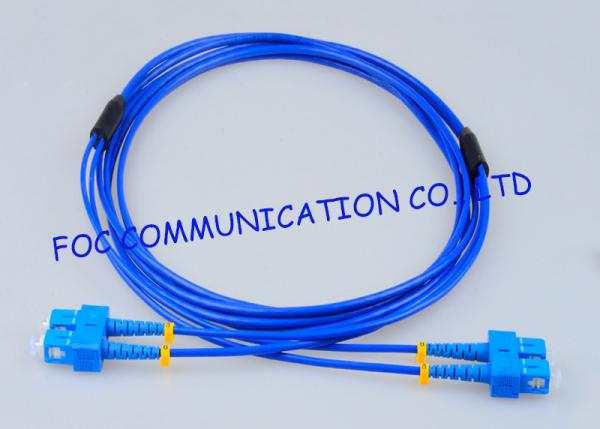

Rugged Optical Fiber Patch Cord SC - SC G.657A Fiber Optic Jumper Cables
Rugged Optical Fiber Patch Cord SC - SC G.657A Fiber Optic Jumper Cables
Specifications
Brand Name :
FOCABLE
Model Number :
Armored SC/UPC-SC/UPC SM Duplex Fiber Optical Patch Cord
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM, G.657A
Cable Material :
LSZH
Cable Diameter :
3.0mm
Connector :
LC/UPC
Cores :
Duplex
Length :
1M, 2M, 3M, 5M or as per customer request
Description

Rugged Optical Fiber Patch Cable SC - SC G.657A Bending Insensitive

The armored cables feature an exclusive mechanism comprised of a steel metal tube that is locked into position by overlapping links. This composition results in an unmatched rugged, but light weight cable that provides maximum flexibility.

Armored fiber optic assemblies available in a variety of configurations including OS2, OM1, OM2, OM3, and OM4 along with common connectors such as the LC, SC, FC, and ST these fiber cables are the perfect addition to any fiber network in hazardous environments. MTP, MTP Elite, and MPO also available in straight and breakout permutations.

These rugged fiber optic assemblies allow for optical fiber to be installed even in the most hazardous of areas including environments with excessive dust, oil, gas, moisture, or even damage causing rodents. These steel jackets provide unparalleled protection against physical damage without sacrificing flexibility or functionality within fiber networks.

Features

Prevent optic fiber from destroy by harsh environment and improper operation

SC-SC armored fiber optic patch cord

Ideal for 10G/100G networks

Without damage by construction

High resistance of tensile strength, pressure, rodent bite

Ensure transmission power and avoid additional attenuation

Application

Harsh environments, where a traditional fiber optic patch cable may fail

Applications requiring moisture, weather resistance

Telecommunications and data trunk

Long haul networking

Building interconnections

Specifications

Connector Type SC, LC, FC, ST, MTRJ
Endface Type(nm) PC UPC APC
Insertion Loss(dB) ≤0.30 ≤0.30 ≤0.30
Repeatability(dB) ≤0.10
Exchangeability(dB) ≤0.20
Return Loss(dB) ≥45 ≥50 ≥60
Fiber Type SM, MM
Operation Temperature(℃) -25℃~ +70℃
Storage Temperature(℃) -40℃~ +85℃
Durability(time) >1000 times
Industry Standard Telcordia GR-326-CORE

Rugged Optical Fiber Patch Cord SC - SC G.657A Fiber Optic Jumper Cables

Armored Fiber Optic Patch Cord, Armored Optical Fiber Patch Cord, Rugged Fiber Optic Assemblies, Armored Fiber Jumpers
