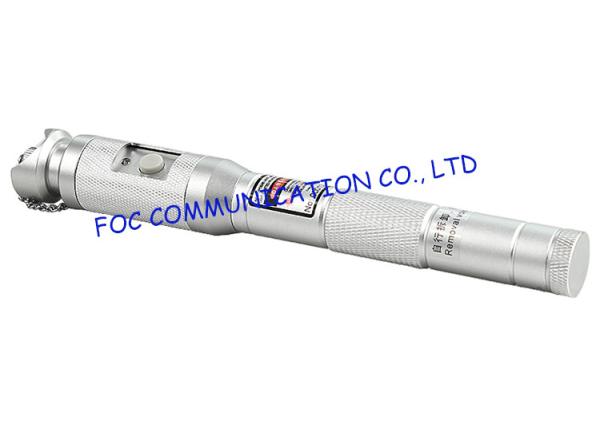

Optical Fiber Visual Fault Locator VFL 10mW for CATV system and maintenance
Optical Fiber Visual Fault Locator VFL 10mW for CATV system and maintenance
Specifications
Brand Name :
FOCABLE
Model Number :
Visual Fault Locator VFL650-2S
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Type :
Handheld
Wavelength(nm) :
650
Output power :
5mW, 10mW, 20mW, 30mW
Optical Connector :
FC
Description

Fiber Optic Test Equipment Optical Fiber Visual Fault Locator VFL 10mW

General information

In today's fast-paced workplace maximizing productivity is essential. Whether installing new fiber links or troubleshooting an existing network, the faster you can locate a problem, the faster you can fix it. That's easier said than done when you are faced with a complex network of fibers, connectors and patch cords.

The laser-powered Optical Fiber Visual Fault Locator is a cable continuity tester that locates fibers, verifies cable continuity and polarity. This cable continuity tester helps find breaks in cables, connectors and splices. Continuous and flashing modes make for easier identification. Compatible with 2.5mm and 1.25mm connectors for easy connection. Ruggedly constructed for demanding field-testing. This visual fault locator has a long battery life for hours of use.

Applications

  1. Optic fiber communication and maintenance
  2. Security system optic fiber transmitter setup and maintenance
  3. Optic fiber CATV system and maintenance
  4. Optic fiber sensing research
  5. Optical devices manufacture and research

Features

  1. Convenient for use and carry Dust-proof design keeps fiber connectors clean
  2. Compact in size, light in weight, red laser output, both SM and MM available.
  3. Operates either in CW or Pulsed
  4. Constant output power
  5. Lower Battery warning

Technical Specifications

Model

VFL650-2S

Central wavelength

650nm±10nm (635nm is available on request)

Emitter type

FP-LD

Output power

5mw

10mw

20mw

30mw

Laser Range

≥5KM

≥10KM

≥20KM

≥30KM

Optical connector

2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request

Operating model

Both CW and Pulse available

Pulse frequency

2Hz to 3Hz/9Hz

Power supply

2AA alkaline batteries

Battery

AA alkaline battery

Operating temperature

-20°C to 60°C

Storage temperature

-40°C to 85°C

Dimension

Φ25 X 195

Weight

100g (without battery)

Standard Packages – Pen-type Visual Fault Locator

Model

Includes

VFL-650-2S

Main unit, User Manual

Optical Fiber Visual Fault Locator VFL 10mW for CATV system and maintenance
