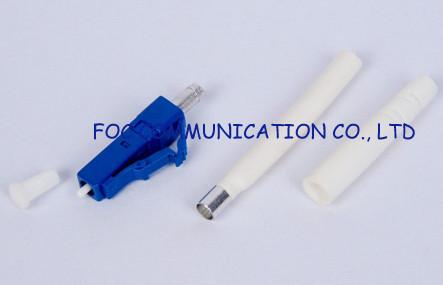

Networks LC SM Fiber Optic Connector Stable with Plastic Housing
Networks LC SM Fiber Optic Connector Stable with Plastic Housing
Specifications
Brand Name :
FOCABLE
Model Number :
LC/UPC Singlemode Fiber Optic Connector
Certification :
ISO Certificate, RoHS Compliant
Place of Origin :
China
MOQ :
100PCS
Supply Ability :
900000PCS/Month
Packaging Details :
100PCS/Bag
Connector Outer Diameter :
3.0mm, 2.0mm, 0.9mm
Connector :
FC, SC, ST, LC, SMA, E2000, MPO, MTRJ
Polishing Type :
UPC, APC
Cores :
Simplex, Duplex
Fiber :
SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4
Material :
Plastic Housing, Metal Housing
Description

Networks LC SM Fiber Optic Connector Stable with Plastic Housing​

LC fiber optic connector is a small form-factor (SFF) fiber optic connector with RJ-45 style interface and resembles a small SC connector. The push-pull latching mechanism provides quick insertion and removal while also ensuring a positive connection. The LC fiber optic connector is available in the physical contact (PC) pre-dome ferrule end-face as well as the Angled Physical Contact (APC) ferrule end-face with 8°angle for applications where reduced back reflection is desired.

Features
Compliant with ANSI, IEC, TIA/EIA, RoHS
Low insertion loss and back reflection
Free floating ￠1.25mm precision zirconia ferrule
High durability and reliability
Telcordia style boots
Plastic housing and boots in a variety of colors

Specifications

Specifications Singlemode Multimode
Insertion Loss ≤0.2dB typical ≤0.2dB typical
Return Loss ≥55dB PC
≥65dB APC
Durability(1000 matings) <0.2dB <0.2dB
Operating Temperature -40℃～+85℃ -40℃～+85℃


Ordering Information

Ferrule ID Body Body Color Boot Type Boot Color
LC PC 125.0 Simplex Blue(SM) 900um White
APC 125.5 Duplex Beige(MM) 2mm Beige
127.0 Green(APC) 3mm Green

Applications

Testing Instrument, active device connection

Premise Installations

Local area networks, wide area networks
Telecommunication Networks

Fiber to the home

Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
