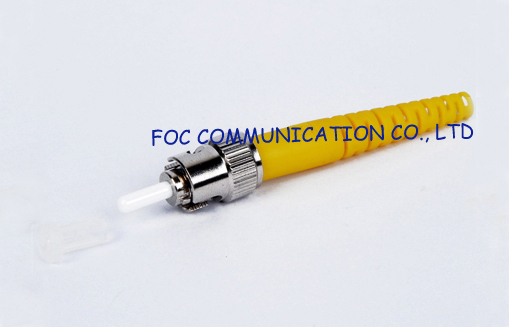

Metal Housing RoHS st fiber connector For Fiber Optical Communication System
Metal Housing RoHS st fiber connector For Fiber Optical Communication System
Metal Housing RoHS st fiber connector For Fiber Optical Communication System
Metal Housing RoHS st fiber connector For Fiber Optical Communication System
Specifications
Brand Name :
FOCABLE
Model Number :
ST Fiber Optic Connector
Certification :
ISO Certificate, RoHS Compliant
Place of Origin :
China
MOQ :
100PCS
Supply Ability :
900000PCS/Month
Packaging Details :
100PCS/Bag
Connector Outer Diameter :
3.0mm, 2.0mm, 0.9mm
Connector :
FC, SC, ST, LC, SMA, E2000, MPO, MTRJ
Polishing Type :
UPC, APC
Cores :
Simplex, Duplex
Fiber :
SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4
Material :
Plastic Housing, Metal Housing
Description

Metal Housing RoHS st fiber connector For Fiber Optical Communication System

Fiber Optic Connector is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, the insertion loss and optical performance of fiber optic connector should be excellent.

There are single mode and multimode connectors. According to the shape of fiber optic connectors, there are FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN and so on.

Material

Cores: simplex, multi core pigtails(6pack, 8pack, 12pack, 24pack, 48pack)

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

Endface type: UPC, APC

Features

Using High precision ferrule

Low insertion loss

High return loss

Excellent repeatability

Compact and anti-pull design
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors

Applications

Local area networks, wide area networks

Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection

Premise Installations
Telecommunication Networks

Fiber to the home

SPECIFICATIONS

Type

Single Mode (typical)

Single Mode (maximum)

Multimode(maximum)

Insertion Loss

≤0.2dB

≤0.3dB

≤0.3dB

Return Loss

≥55dB

≥50dB

≥25dB

Operating Temperature

-40℃ to +80℃

-40℃ to +80℃

-40℃ to +80℃

Ordering Information

Cores Count

01=simplex, 02=duplex

Fiber Type

1=G652D, 2=G657A, 3=OM3,50/125um 4=OM4 5=OM1, 62.5/125um, 6=OM2, 62.5/125um

Cable Outer Diameter

L=900µm Loose or tight tube, S=2.0mm, R=3.0mm, X=others

Connector Type

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others

Metal Housing RoHS st fiber connector For Fiber Optical Communication System

Fiber Optic Connector, Optical Fiber Connector, Fiber Connector, Fiber Connectors

Product tags

st fibre optic connector

,

sc st fiber connector

,

st type fiber optic connector
