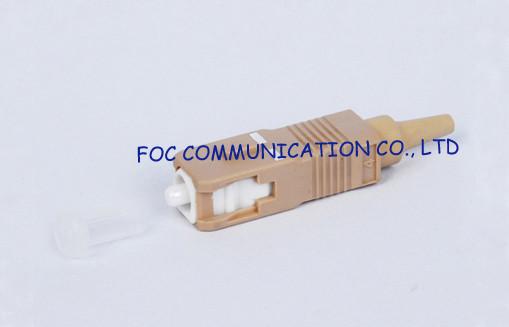

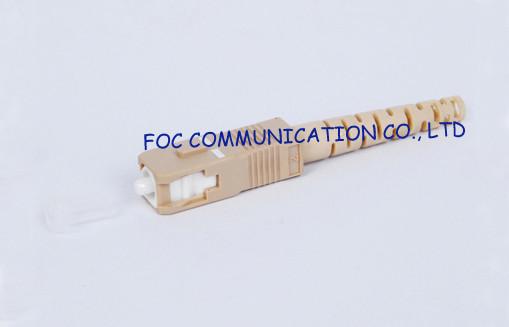

CATV / WAN multimode sc connector fiber optic For Patch Cords , Excellent repeatability
CATV / WAN multimode sc connector fiber optic For Patch Cords , Excellent repeatability
CATV / WAN multimode sc connector fiber optic For Patch Cords , Excellent repeatability
CATV / WAN multimode sc connector fiber optic For Patch Cords , Excellent repeatability
CATV / WAN multimode sc connector fiber optic For Patch Cords , Excellent repeatability
CATV / WAN multimode sc connector fiber optic For Patch Cords , Excellent repeatability
Specifications
Brand Name :
FOCABLE
Model Number :
SC/UPC Multimode Fiber Optic Connector 0.9mm
Certification :
ISO Certificate, RoHS Compliant
Place of Origin :
China
MOQ :
100PCS
Supply Ability :
900000PCS/Month
Packaging Details :
100PCS/Bag
Connector Outer Diameter :
3.0mm, 2.0mm, 0.9mm
Connector :
FC, SC, ST, LC, SMA, E2000, MPO, MTRJ
Polishing Type :
UPC, APC
Cores :
Simplex, Duplex
Fiber :
SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4
Material :
Plastic Housing, Metal Housing
Description

CATV / WAN SC Optical Fiber Connectors Multimode For Patch Cords

SC fiber optic connectors, Connected with GBIC optical modules connector, its casing is rectangular, fastening means is a latch type using pin plug, do not need to rotate.(Mostly used in Switch Router). SC fiber optic connectors can be simplex or duplex, ANSI , IEC , TIA/EIA , NTT and JIS standard compatible, UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm, with precision mechanical dimensions, zirconia ferrule PC or 8 degree APC diameter125~128 um high concentricity, single mode and Multimode can be chosen,multi-piece type or one-piece type is available.

Features
Ferrule end surface pre-domed
UL-rated plastic housing
Telcordia style boots
Low insertion loss
High back reflection loss
Boots in a variety
Free-floating ceramic ferrule

Application
CATV, metro test equipment; FTTH;
Telecommunication networks;
Local area networks (LAN);
Wide area networks (WAN);
Premise installations;
Data processing networks;
Video and military active device termination.
Optical Distribution Frame
Optical Network Equipments

Specifications

Item Single mode Multi mode
Insertion Loss PC<0.3dB APC<0.2dB PC<0.3dB
Return Loss PC>45dB APC>60dB PC>25dB
Insert-pull test 1000 times <0.3dB
Operating temperature -40°C ~ +75°C
Ceramic ferrule spec 125.5um concentricity :<1um 127um concentricity :<3um
fiber PC/APC(9/125um) PC(50/125um,62.5/125um

Ordering Information

Cores: simplex, multi core pigtails(6pack, 8pack, 12pack, 24pack, 48pack)

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

Endface type: UPC, APC

CATV / WAN multimode sc connector fiber optic For Patch Cords , Excellent repeatability

Fiber Optic Connector, Optical Fiber Connector, Fiber Connector, Fiber Connectors
