Specifications
Brand Name :
FOCABLE
Model Number :
SC/APC SM Fiber Optic Pigtail
Certification :
ISO, RoHS Compliant
Place of Origin :
China
MOQ :
10pcs
Packaging Details :
1PCS/Blister Box
Cable :
PVC, LSZH, OFNP, OFNR, Hytrel
Cores :
Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core
Fiber :
OS1, OS2, OM1, OM2, OM3, OM4
Outer Diameter :
0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
Connector :
FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO
Length :
1M, 2M, 3M, 5M or as per customer request
Description

SC / APC Fiber Optic Pigtail Corning Fiber SM Hytrel Low Insertion Loss ODF

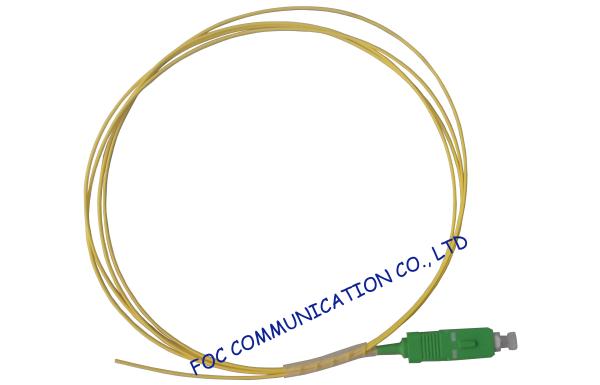

Pigtail is a short section of fiber-optic cable in the coating, one side factory terminated connector, on the other side exposed fiber. Pigtails can be stripped and fusion spliced to fibers of the distribution cable, thus avoiding the process of connectors terminating.

Pigtails are used for splice applications when terminating outside plant cable. All of pigtails are factory inspected and tested, with available interferometer data upon request.

FOC Communication Co., Ltd offers a wide variety of connector options, jacket colors and diameter as well as different flammability ratings, and have the capability to custom build to meet your most stringent mechanical and performance specifications. All patch cords have an identification label and have a unique serial number assigned to them. On each of these labels the part number, serial number, and the length of the pigtails are displayed for easy product recognition and traceability.

Features

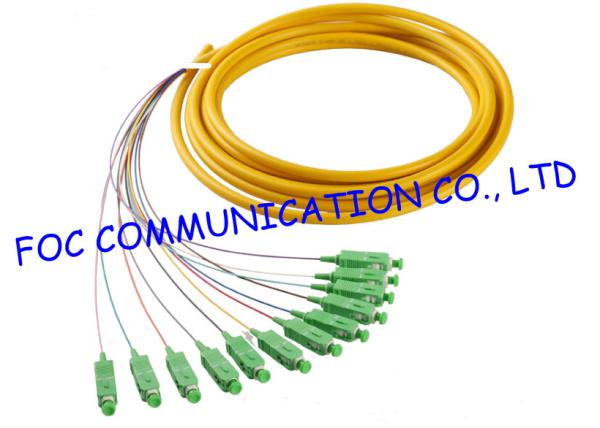

Simplex, and multi-fiber assemblies are available

PC or APC finish
Compliant with Telcordia GR-326-CORE specification
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, LSZH,

Fiber Type: SM, MM OM1, OM2 or OM3 optional
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm

Application
Test equipment
Optical CATV & LAN
Telecommunication networks
Optical communication networks

Specifications

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB
Return Loss ≥55dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm

Ordering Information

Fiber mode Singlemode (9/125um G652D/G657/G655) or Multimode (62.5/125um OM1,OM2,OM3,OM4)
Fiber count Simplex,Duplex or 4, 6, 8, 12, 24, 48 cores are available
Cable diameter 0.9mm/1.2mm/1.6mm/1.8mm/2.0mm/3.0mm etc.
Cable jacket PVC,LSZH,OFNR,OFNP
Cable color SM-Yellow, OM1/OM2-Orange, OM3-Aqua green, OM4-Purple or OEM color
Cable length(M) Customized
Connector type LC, SC, FC, ST, MU, MTRJ, MPO, SMA, D4 and others
Ferrule Ceramic/Zirconia ferrule, made in China or Japan
Polish/Endface PC, UPC, APC
Housing/boot color Standard(Blue/Beige/Green) or OEM color
Packing Multi-piece or one piece type available,Normally polybag+carton box, can be customized
