Fiber Optic Network MM fiber optik pigtail SC Simplex 62.5 / 125um OEM
Fiber Optic Network MM fiber optik pigtail SC Simplex 62.5 / 125um OEM
Specifications
Brand Name :
FOCABLE
Model Number :
SC MM Fiber Optic Pigtail
Certification :
ISO, RoHS Compliant
Place of Origin :
China
MOQ :
10pcs
Packaging Details :
1PCS/Blister Box
Cable :
PVC, LSZH, OFNP, OFNR, Hytrel
Cores :
Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core
Fiber :
OS1, OS2, OM1, OM2, OM3, OM4
Outer Diameter :
0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
Connector :
FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO
Length :
1M, 2M, 3M, 5M or as per customer request
Description

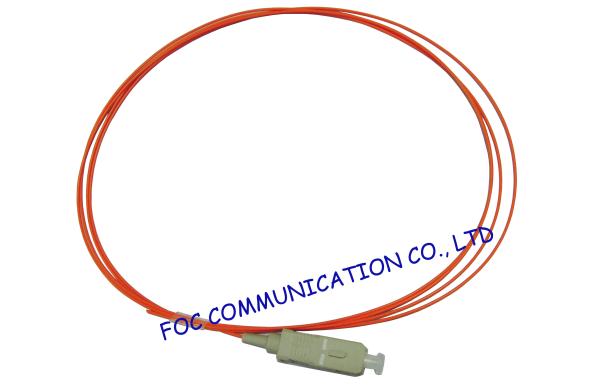

Fiber Optic Network MM 62.5 / 125um Fiber Optic Pigtail OEM SC Simplex​

Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.

Features
Simplex, and multi-fiber assemblies are available

PC or APC finish
Compliant with Telcordia GR-326-CORE specification
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, LSZH,

Fiber Type: SM, MM OM1, OM2 or OM3 optional
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm

Application
Test equipment
Optical CATV & LAN
Telecommunication networks
Optical communication networks

SPECIFICATIONS

Type Single Mode(UPC) Single Mode (APC) Multimode(maximum)
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB
Return Loss ≥50dB ≥60dB ≥25dB
Operating Temperature -40℃ to +85℃ -40℃ to +85℃ -40℃ to +85℃

Ordering Information

Fiber mode Singlemode (9/125um G652D/G657/G655) or Multimode (62.5/125um OM1,OM2,OM3,OM4)
Fiber count Simplex,Duplex or 4, 6, 8, 12, 24, 48 cores are available
Cable diameter 0.9mm/1.2mm/1.6mm/1.8mm/2.0mm/3.0mm etc.
Cable jacket PVC,LSZH,OFNR,OFNP
Cable color SM-Yellow, OM1/OM2-Orange, OM3-Aqua green, OM4-Purple or OEM color
Cable length(M) Customized
Connector type LC, SC, FC, ST, MU, MTRJ, MPO, SMA, D4 and others
Ferrule Ceramic/Zirconia ferrule, made in China or Japan
Polish/Endface PC, UPC, APC
Housing/boot color Standard(Blue/Beige/Green) or OEM color
Packing Multi-piece or one piece type available,Normally polybag+carton box, can be customized
