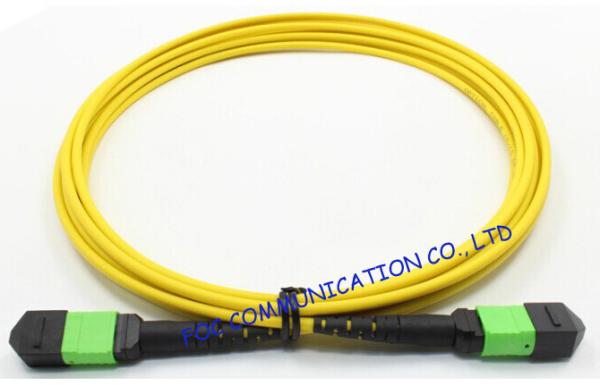

LSZH Jacket FTTX 12 Core Fiber Optic Patch Cord , Fiber Optic Jumper
LSZH Jacket FTTX 12 Core Fiber Optic Patch Cord , Fiber Optic Jumper
Specifications
Brand Name :
FOCABLE
Model Number :
MPO OM3 12core Fiber Optic Patch Cord
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM, OM1, OM2, OM3, OM4
Cable Material :
PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter :
0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm
Connector :
SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores :
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores
Length :
1M, 2M, 3M, 5M or as per customer request
Description

LSZH Jacket FTTX 12 Core Fiber Optic Patch Cord , Fiber Optic Jumper​

We supply fiber optic patch cord, fiber optic patch cable, LC,SC/APC,ST, E2000/APC, MU, VF45, FC, MT-RJ, SC, MPO, Volition, MTP, FC/APC, ST/APC, LC/APC, E2000, DIN, D4, SMA, Escon, FDDI, RoHS compliant, LSZH, Riser, Plenum, OFNR, OFNP, simplex, duplex, single mode, 9/125, SM, multimode, MM, 50/125, 62.5/125.

Fiber Optic Patch Cable Geometric Specification
Types: PC, UPC, APC,
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm, +50 nm
Angular Offset: 8°± 0.5°C (APC)

Ordering Information

Connector 1: LC, FC, SC, ST, MTRJ, DIN, D4, E2000, MPO

Connector 2: LC, FC, SC, ST, MTRJ, DIN, D4, E2000, MPO

Ferrule Interface type: UPC, APC

Fiber cores: Simplex, duplex

Fiber type; Singlemode(G. 652, G655), multimode(50/125)/(62.5/125),OM3

Fiber diameter(mm): Φ 0.9, Φ 2.0, Φ 3.0

Fiber length:Customize length

Features of fiber optic patch cord

1. Low insertion loss and High Return Loss

2. Fully compliant with standards of IEC and YD-T826/1996

3. Temperature stability: Operating temperature: -20 to +75°C

4. High durability, more than 500 times mating.

5. Individual package with detail information label.

6. All patch cords are 100% tested

SPECIFICATIONS

Connector

FC, SC, ST, LC

UPC

APC

Insertion Loss

≤0.3dB

Return Loss

≥50dB

≥60dB

Cable Outer Diameter(mm)

￠0.9, ￠2.0, ￠3.0

Durability

≤0.3dB(1000 matings)

Interchangeability

≤0.2dB

Operating Temperature

-40℃～+80℃

Technical Test Data

Test item

Test condition

Wet-resistance

Temperature:85ºC/relative humidity 85％/14days/insertion loss≤0.1dB

Temperature change

Temperature: -40ºC~+75ºC/relative humidity 10％-80％ /42 repetitions/14days/ insertion loss≤0.1dB

Water resistance

Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB

Vibrancy

Swing 1.52mm/frequency 10Hz～55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB

Load bend

0.454kg load/100circles insertion loss≤0.1dB

Load torsion

0.454kg load/10 circles insertion loss ≤0.1dB

Tensility resistance

0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB

Strike

High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB

Reference standard

Bellcore TA-NWT-001209 insertion loss≤0.1dB

Re Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.

LSZH Jacket FTTX 12 Core Fiber Optic Patch Cord , Fiber Optic Jumper

Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
