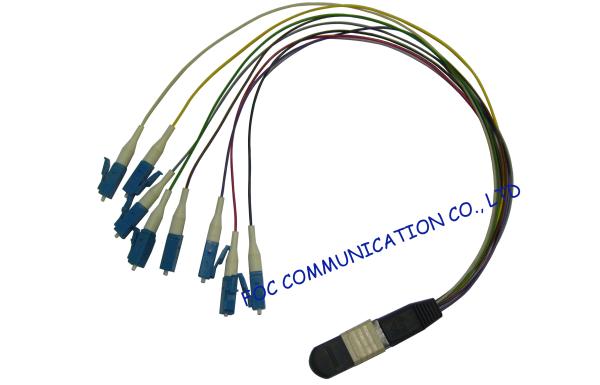

Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable
Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable
Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable
Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable
Specifications
Brand Name :
FOCABLE
Model Number :
MPO-LC 8Core Fiber Optic Patch Cord
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM, OM1, OM2, OM3, OM4
Cable Material :
PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter :
0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm
Connector :
SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores :
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores
Length :
1M, 2M, 3M, 5M or as per customer request
Description

Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable

We supply fiber optic patch cord, fiber optic patch cable, LC,SC/APC,ST, E2000/APC, MU, VF45, FC, MT-RJ, SC, MPO, Volition, MTP, FC/APC, ST/APC, LC/APC, E2000, DIN, D4, SMA, Escon, FDDI, RoHS compliant, LSZH, Riser, Plenum, OFNR, OFNP, simplex, duplex, single mode, 9/125, SM, multimode, MM, 50/125, 62.5/125.

Features

Low insertion Loss and low return loss

Good exchangeability

Good Durability

High temperature stability

Standard: Telcordia GR-1435-CORE compliant

Applications

CATV, Multimedia

Telecommunication Networks

Data processing networks

Premise installations

Optical switch interframe connection

Specifications

Single Mode

Multimode

Insertion Loss

Typical≤0.5dB,Maximum≤0.75dB

Typical≤0.5dB,Maximum≤0.75dB

Return Loss

≥50dB

≥30dB

Operating Temperature

-20℃～70℃

Durability

≤0.2dB typical changes, 1000matings

Interchangeability

≤0.2dB

Tensile strength

>70N

Repeatability

≤0.1dB

Ordering Information

Connector Type

Housing Color

Boot Type

Cores

Fiber Type

Length

Male

Beige

Bare fiber short boot

4cores

9/125um(SM)

Customized

Female

Black

Ribbon Cable

8cores

50/125um(MM)

Green

Bare fiber long boot

12cores

62.5/125um(MM)

Yellow

90 degree boot

16cores

OM3

24cores

Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable

Advantages
1. Guaranteed high quality products
2. Fast delivery speed
3. Safety Shipping
4. Quick Response within 24hours

Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
