Indoor Simplex SM or MM Optical Fiber Cable For Fiber Optic Patch Cord
Indoor Simplex SM or MM Optical Fiber Cable For Fiber Optic Patch Cord
Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Optic Cable Indoor Simplex
Certification :
ISO Certificate, RoHS Compliant
Place of Origin :
China
MOQ :
1KM
Payment Terms :
T/T, Western Union
Packaging Details :
1KM/drum
Material :
PVC, LSZH, OFNR, OFNP
Cores :
One Core
Fiber Type :
SM G.652D, SM G.657, MM 50/125um, MM 62.5/125um, OM3, OM4
Jacket Color :
Yellow, Orange, White or Customer Request
Description

Indoor Simplex SM or MM Optical Fiber Cable For Fiber Optic Patch Cord​

There are indoor cable and outdoor cable, single mode and multimode cable, simplex, duplex or multi-core cable.

Simplex means this cable is with only one thread of fiber optic glass inside the single core. Additionally, simplex cables are with one single outer jacket. Simplex fiber optic cable is used in applications that only require one-way data transfer.

For instance, an interstate trucking scale that sends the weight of the truck to a monitoring station or an oil line monitor that sends data about oil flow to a central location. There are singlemode and simplex multimode fiber optic cable available.

Single-mode simplex fiber optic cable is a great option for anyone setting up a cable network that will require data to travel in one direction over long distances. Since this type of cable only carries one ray of light at a time, it’s better for long-distance transmissions. Single-mode fiber is very reliable that it has a high-carrying capacity as well as lower power consumption than other options.

Features

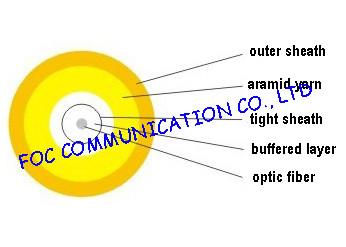

High strength aramid yarn strength member ensures tension-resistance and long term stable transmission for optical fibers.

￠900um or ￠600um tight buffer fiber, semi-tight buffer fiber also available.

Nominal outer jacket diameter from 2.0mm to 3.0mm.

Applications

Indoor cable connections

Cable for connectors and patch cord

Specifications

Cores

OD(mm)

Max.tension(N)

Min.bending radius(N/100mm)

Working termperature(℃)

Long term(N)

Short term (N)

Install (mm)

Static (mm)

Simplex

2

60

100

20D

10D

-20℃～+60℃

2.5

60

100

20D

10D

3

60

100

20D

10D

Ordering Information

Fiber Count

Fiber Type

Jacket Material

Jacket Color

Outer diameter

1

SM G.652D

PVC

Yellow-Indoor

Nominal

SM G.657

LSZH

Orange-Indoor

Customized

MM 50/125um

PE

Black-Outdoor

MM 62.5/125um

Customized

Customized

Fiber Optic Cable, Optical Fiber Cable, Tight buffered cable, Fiber Cable

Product tags

optic fibre patch cord

,

optical fiber patch cord

,

fiber-optic patch cord
