Breakout Multicores Optical Fiber Cable For Cable Distribution or Assemblies
Breakout Multicores Optical Fiber Cable For Cable Distribution or Assemblies
Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Optic Cable Breakout
Certification :
ISO Certificate, RoHS Compliant
Place of Origin :
China
MOQ :
1KM
Payment Terms :
T/T, Western Union
Packaging Details :
1KM/drum
Material :
PVC, LSZH, OFNR, OFNP
Cores :
6Cores, 8Cores, 12Cores, 24Cores
Fiber Type :
SM G.652D, SM G.657, MM 50/125um, MM 62.5/125um, OM3, OM4
Jacket Color :
Yellow, Orange, White or Customer Request
Description

Fiber Optic Cable Breakout Multicores Suitable For Cable Distribution or Assemblies

Breakout Cables with 12 fibers or less consist of two to twelve 2.0 mm MiniCord subunits covered by a PVC or LSZH outer jacket. The unit tubes are then arranged around a dielectric central organizer and surrounded by a color-coded jacket. MiniCord Breakout Cables with fiber counts of 18 to 72 contain either six or twelve 2.0 mm MiniCords in each unit tube. These unit tubes are encased in a color-coded PVC or LSZH jacket. A ripcord under the outer jacket allows fast and easy sheath removal.

Indoor breakout cable is with double sheath provides anti-friction and water-proof performance. And it is good performance in crush resistance, anti-ultraviolet and anti-aging. The cable is easy for operation and suitable for indoor-outdoor application.

Description

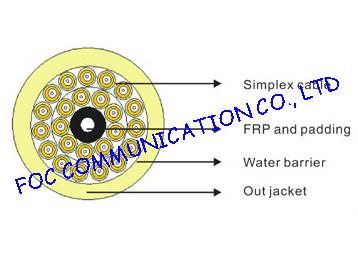

Composed of not more than 48 simplex cables, each simplex with its independent strength member and outer jacket. It is an SZ intertwisted cable without binding tape.

Features

Good mechanical and enviromental characteristics which meet the requirement of relevant standards

Soft, flexible, easy to lay and splice, and with big capacity data transmission
Each simplex cable contains Kevlar as strength aramid yarn, high strength, good bending performance, no gel, easy to be connected and operated on.
Each simplex with buffer design, independent strength member and sheath to prevent damage from environmental and mechanical stress.

Good mechanical and environment characteristics
Flame retardant characteristics meet the requirements of relevant standards
Meet various requirements of market and clients.

Applications
Indoor level and vertical cabling, ceiling cabling, surface cabling etc.
Standard fiber core for direct connector installation and connecting to equipment.

Used for access building cable
Used in pigtails and patch cord
Used in optical connections in optical communication equipment rooms and optical distribution frames
Used in optical connections in optical apparatus and equipments

Specifications

Fiber Count

Cable Diameter(mm)

Weight(kg/km)

Tensile(N)

Crush(N/100mm)

Min.Bending Radius(mm)

Long Term

Short Term

Long Term

Short Term

Dynamic

Static

16

12.0

120

500

1500

300

1000

20D

10D

24

15.0

178

800

2200

300

1000

36

17.5

200

1000

3000

300

1000

48

20.0

247

1500

4000

300

1000

Ordering Information

Fiber Count

Fiber Type

Jacket Material

Jacket Color

Outer diameter

12

SM G.652D

PVC

Yellow-Indoor

Nominal

16

SM G.657

LSZH

Orange-Indoor

Customized

24

MM 50/125um

PE

Black-Outdoor

36

MM 62.5/125um

Customized

Customized

48

Fiber Optic Cable, Optical Fiber Cable, Tight buffered cable, Fiber Cable
