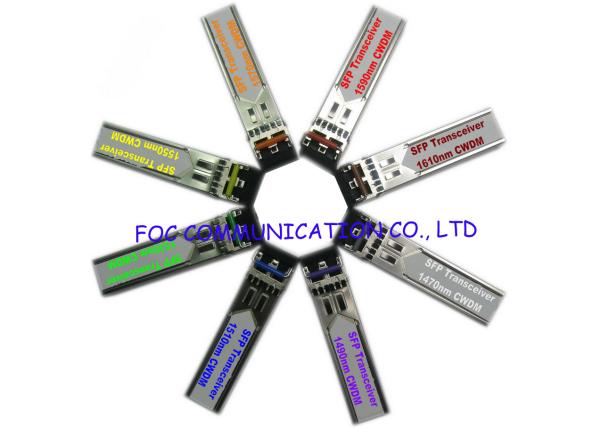

CWDM SFP Transceiver Hot-pluggable SFP 8 Channel CWDM Wavelength For Ethernet

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA),The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 120KM in 9/125um single mode fiber.

The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network vendors. SFP transceivers are designed to support SONET, Gigabit Ethernet, Fibre Channel, and other communications standards.

The Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

General information

SFP package with LC connector
Single +3.3V Power Supply
Up to 120Km transmission with single-mode fiber
Compliant with Telcordia (Bellcore) GR-468-CORE
Eye Safety Designed to Meet Laser Class1,Compliant with IEC60825-1
RoHS Compliant Products Available

Features
Up to 1.25Gbps bi-directional data links
Hot-pluggable SFP footprint
Uncooled DFB laser transmitter in 8 possible CWDM wavelengths
Duplex LC connector
Metal enclosure, for lower EMI
Single power supply 3.3V
Low power dissipation <700mW
Operating temperature range: 0°C to 70°C

Applications
Metro Access Rings

Point-to-Point networking for Gigabit Ethernet

Fibre Channel

Specifications
