Loose Tube self supporting aerial cable GYXTC8S / outdoor armored fiber optic cable
Loose Tube self supporting aerial cable GYXTC8S / outdoor armored fiber optic cable
Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Optic Cable GYXTC8S
Certification :
ISO Certificate, RoHS Compliant
Place of Origin :
China
MOQ :
1KM
Payment Terms :
T/T, Western Union
Supply Ability :
1000KM/Month
Packaging Details :
1KM/drum
Jacket Material :
PE Jacket
Cores :
12Cores, 24Cores, 36Cores, 48Cores, 72Cores, 96Cores
Fiber Type :
SM G.652D, SM G.657, MM 50/125um, MM 62.5/125um, OM3, OM4
Jacket Color :
Black or Customer Request
Description

Loose Tube self supporting aerial cable GYXTC8S / outdoor armored fiber optic cable​

Outdoor Armored Cables incorporate aluminum interlocking armor. Jacketed aluminum interlocking armor provides the best balance of ruggedness, flexibility and low weight.

Outdoor applications, the cables utilize both UV-stabilized jacketing materials with anti-fungal additives; core cables also contain water-blocking elements to prevent water migration. Products are approved for use in mining applications.

Outdoor Armored Fiber Cable are made to protect the optical fiber to operate safely in complicated outdoor environment. Most Outdoor Armored fiber cables are loose buffer design, with the strengthen member in the middle of the whole cable, the loose tubes surround the central strength member. Inside the loose tube there is waterproof gel filled, whole cable materials used and gels inside cable between the different components (not only inside loose tube) will help make the whole cable resist of water.

Features

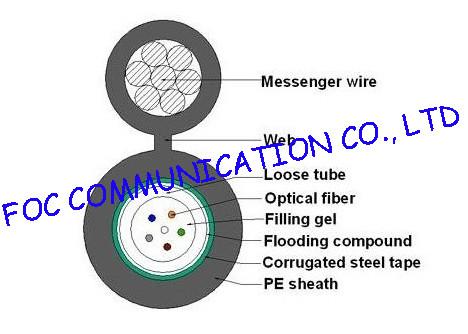

Loose tube style ,figure-8 optical fiber cable, self-suppport aerial
Filling compound and water-proof tape Amoured with corrugated steel tape
Incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises.
high strength, tracking-resistant sheath

Application
Usable for aerial installation
Long-haul communication systems
Junction communication systems
Subscriber network systems
Local area network systems

Specifications

Fiber Count

2-12

O.D.(mm)

8.3

Approx.weight(kg/km)

133

Max.Tensile strength(N)

2000

Max.Crush Resistance

Long term

300

Short term

1000

Min.Bending Radius

Dynamic

≥20D cable diameter

Static

≥10D cable diameter

Fiber Optic Cable, Optical Fiber Cable, Tight buffered cable, Fiber Cable
