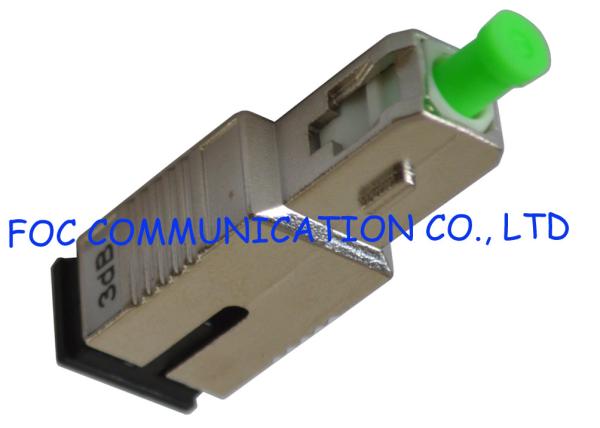

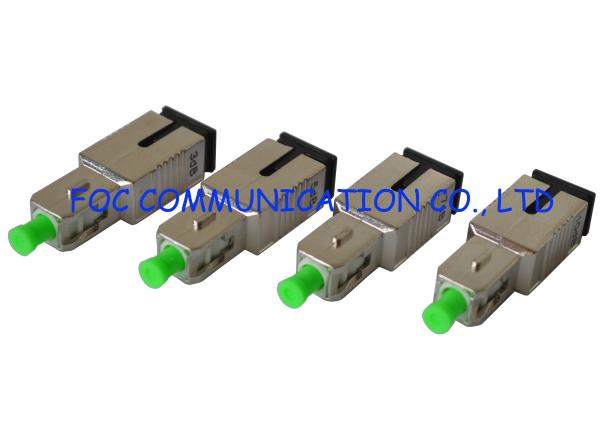

SC / APC Male to Female Fiber Optic Attenuator Compact High Precision

SC/APC Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. And it is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.

Fiber optic attenuators SC/APC are designed to give accurate attenuation over a wide range of wavelengths. The plug type configuration allows them to be used directly on the end of a patch cord, which in turn can insert directly into an adaptor.

Optical attenuator SC/APC are capable of withstanding over 1W of high power light exposure for extended periods of time, making them well-suited to EDFA and other high-power applications. Low Polarization Dependent Loss (PDL) and a stable and independent wavelength distribution makes them ideal for DWDM.

Features

High precision attenuation level(with 1dB,2dB,3dB... to 30dB, typical 5dB, 10dB 15dB)

Precision control of attenuation range
Wide attenuation range

Low back reflection and Low PDL

Precision ceramic ferrule

Plastic or metal housing material

Inline design is easy to use (plugs between existing fiber jumper & equipment)

Portable, Easy installation, Readily panel mountable

High Quality Return loss 60db or Greater

Dual wavelength (1310nm/1550nm)

Attenuators marked with attenuation level

FC, SC, ST, LC MU optional
100% factory test

Fixed type, male to female type, in-line type, variable type
UPC, APC available

Standard

RoHS compliant

Telcorida GR-326-CORE(ferrule end face quality compliant)

Telecordia GR-910-CORE

EC 60874-7, F01(JIS C5970) TIA/EIA-604-4A

TIA/EIA-568B-B.3 Fiber Optic Cabling Components Standard

EEE802.3z Standards for Fiber Optic Cabling

RoHS Approved for European Market Requirements

Application

Fiber Optic Telecommunication System

Telecommunication networks

Data Networks
Fiber optical CATV
Fiber optical sensor
Testing equipment

Specifications

Ordering Information
