Optical Fiber Loopback Singlemode LC SC MTRJ For Testing Equipment
Optical Fiber Loopback Singlemode LC SC MTRJ For Testing Equipment
Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Optic Loopback LC UPC SM
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM
Cable Material :
PVC
Cable Diameter :
0.9mm
Connector :
LC/UPC
Cores :
Simplex
Length :
0.3M
Description

Optical Fiber Loopback Singlemode Optical Fiber Patch Cord Fiber Networks

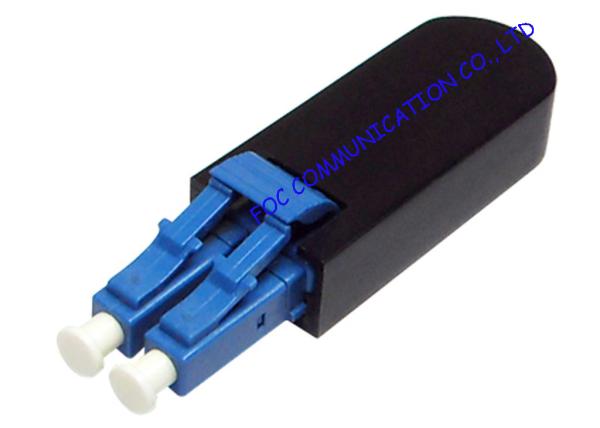

LC Single Mode 9µm Loopbacks are used to provide test engineers with an effective way of testing the transmission capability and receiver sensitivity of optical network equipment. This loopback plug features a compact design, long thumb release, molded A and B channel markers, and a custom designed strain relief boot. The optical fiber cable is protected by a standard, flexible, fire-retardant and highly durable PVC jacket. The loopback is enclosed in a hard shell case.

Fiber optic loopbacks are with compact design, and they are compliant with fast ethernet, fiber channel, ATM and Gigabit ethernet. we also offer custom assemblies for fiber optic loopback. the common fiber optic loopbacks types are: SC fiber optic loopback, FC fiber optic loopback, LC fiber optic loopback and MTRJ fiber optic loopback.

Features
Compact design
Compatible with Fast Ethernet, Fiber Channel, ATM and Gigabit Ethernet
Short wavelength devices
Custom assemblies available

Application
ATM
Compact design
Compatible with Fast Ethernet,
Fiber Channel
Gigabit Ethernet

Technical specifications

Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss (dB) ≤0.2 (max≤0.3)
Repeatability (dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
diameter 0.9mm 2.0mm, 3.0mm etc
Cable material PVC, LSZH

Optical Fiber Loopback Singlemode LC SC MTRJ For Testing Equipment

Fiber Optic Loopback, Optical Fiber Loopback, Fiber Loopbacks
