Optical Fiber Cable 4core With Flexible Metal Tube and Braid For CATV
Optical Fiber Cable 4core With Flexible Metal Tube and Braid For CATV
Specifications
Brand Name :
FOCABLE
Model Number :
4Core Armored Fiber Optic Cable with Braid
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
1KM
Payment Terms :
T/T, Western Union
Supply Ability :
100KM/week
Packaging Details :
Wooden drum
Fiber :
SM, OM1, OM2, OM3, OM4
Outer diameter :
4.0mm or as per customer request
Jacket Material :
PVC, LSZH, OFNP, PU
Color :
SM-Blue, MM-Grey, PU Jacket-Black or as per customer request
Cores :
4core
Structure :
OEM products are available
Description

Optical Fiber Cable 4core With Flexible Metal Tube and Braid For CATV

Armored fiber optic cable can be deployed directly in harsh environment, without additional tube for protection, save space, reduce construction cost and make the maintenance more conveniently. Furthermore, the stainless steel tube prevents optical fiber from damage, which improves security and stability of the system.

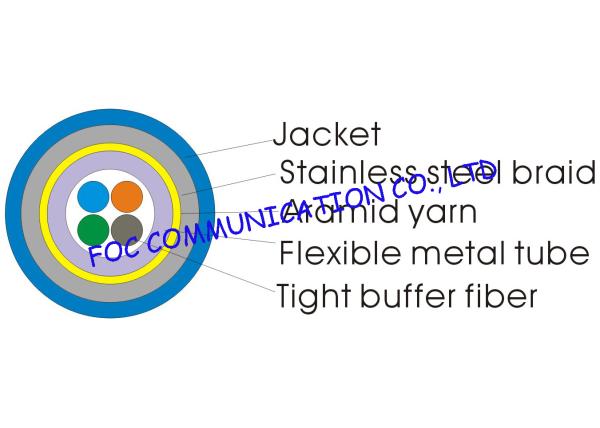

Structure: 0.6MM tight-buffered fiber*4+ Flexible metal tube + Aramid yarn + Stainless steel braid + jacket

Item

Unit

Standard

Thickness

Fiber

mm

0.60±0.05

Flexible Metal Tube

mm

2.30±0.10

0.35

Kevlar

decitex

2000

Stainless Steel Braid

mm

4.20±0.10

0.07

Jacket Outer Diameter

mm

3.90±0.10

Applications

Fiber to the home, FTTH

LAN and CATV

Test Equipment

Military industry

Fiber optic communication system

Optical active component and equipment

Used for Pigtails and Patch cord

Ideal for use in optical device, equipment

Ideal for use in optical distribution frame

Features

Good mechanical and environmentai characteristics;
Soft, flexible, solid, easy to splice, It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
Flame retardant characteristics and the meet the requirements of relevant standards;
Single-mode:9/125µm; Multi-mode: 62.5/15µm & 50/125µm;
High compression resistant, high tensile resistant, rat –bite resistant;

Specifications

Item

Single mode

Multimode

Outer diameter

4.0mm

4.0mm

Standard color

blue

gray

Cable weight

26kg/km approx

Operating temperature

-20℃～+80℃

Storage temperature

-40℃～+80℃

Tensile strength

Short term

≥600N

Long term

≥400N

Compression resistant strength

≥3000N/100MM

General attenuation

1310nm

≤0.35dB/km

850nm

≤3.0dB/km

1550nm

≤0.25dB/km

1300nm

≤1.0dB/km

Minimal Bending radius

≥30D

≥30D

Printing contents

OPTICAL CABLE SM(9/125) 4.0mm 4C XXXXM

OPTICAL CABLE MM(62.5/125) 4.0mm 4C XXXXM

We can produce many more types armored fiber optic cable upon customer request.
