Single Mode Simplex 2.0mm Optical Fiber Cable , Ftth / Lan outdoor Armored Fiber Optic Cable
Single Mode Simplex 2.0mm Optical Fiber Cable , Ftth / Lan outdoor Armored Fiber Optic Cable
Specifications
Brand Name :
FOCABLE
Model Number :
Simplex Armored Fiber Optic Cable
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
1KM
Payment Terms :
T/T, Western Union
Supply Ability :
100KM/week
Packaging Details :
Wooden drum
Fiber :
SM, OM1, OM2, OM3, OM4
Outer diameter :
2.0mm or as per customer request
Jacket Material :
PVC, LSZH, OFNP, PU
Color :
SM-Blue, MM-Grey, PU Jacket-Black or as per customer request
Cores :
Simplex
Structure :
Without braid or OEM is also available
Description

Single Mode Simplex 2.0mm Optical Fiber Cable , Ftth / Lan outdoor Armored Fiber Optic Cable

FOC COMMUNICATION CO., LTD offers armored fiber optic cable and non-armored fiber optic cable. Fiber optic armored cable was covered flexible metal tube and it protects the fiber from damage.

We supply simplex armored cable, duplex round armored cable, zipcord duplex optical fiber armored cable, 4cores armored fiber optic cable, 8cores armored cable and 12cores. They are suitable for test equipment, FTTX, CATV, Optical Communication networks and so on.

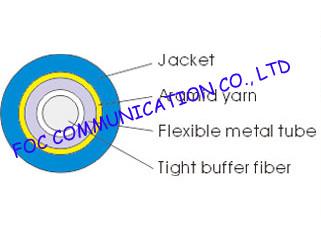

Cable Structure: 0.6mm tight buffer fiber+ Flexible metal tube + Aramid yarn + Outer jacket (PVC,LSZH, PU)

Features
Flexible metal tube protect the fiber optic from damage
High compression resistance, high tensile resistance, rat bite resistance.
Bend resistance and optimum flexible.
Easy wiring, secured and reliable
Improve the security and stability of the system

Applications
FTTH, LAN and WAN
Test Equipment
Military industry
Fiber Communication System
CATV

Single Mode Simplex 2.0mm Optical Fiber Cable , Ftth / Lan outdoor Armored Fiber Optic Cable

Specifications

Item

Single mode

Multimode

Outer diameter

1.9mm

1.9mm

Standard color

blue

gray

If PU jacket, the standard color is black only

Cable weight

7kg/km approx

Temperature

PVC or LSZH Jacket

-20℃～+70℃

PU Jacket

-40℃～+85℃

Tensile strength

Short term

≥100N

Long term

≥60N

Compression resistant strength

≥3000N/100MM

General attenuation

1310nm

≤0.35dB/km

850nm

≤3.0dB/km

1550nm

≤0.25dB/km

1300nm

≤1.0dB/km

Minimal Bending radius

Dynamic ≥20D
Static ≥10D

Dynamic ≥20D

Static ≥10D

Printing contents

OPTICAL CABLE SM(9/125) 2.0mm 1C XXXXM

OPTICAL CABLE MM(62.5/125) 2.0mm 1C XXXXM
