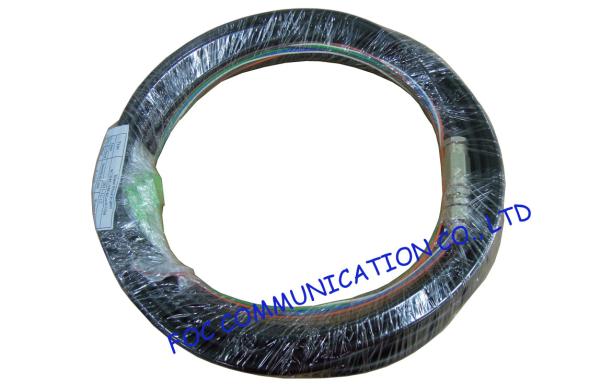

Waterproof Fiber Optic Pigtail SC/APC SM Low Insertion Loss for CATV
Waterproof Fiber Optic Pigtail SC/APC SM Low Insertion Loss for CATV
Specifications
Brand Name :
FOCABLE
Model Number :
Waterproof Fiber Optic Pigtail SC/APC
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM, OM1, OM2, OM3, OM4
Cable Material :
PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter :
0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm
Connector :
SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores :
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores
Length :
1M, 2M, 3M, 5M or as per customer request
Description

Waterproof Fiber Optic Pigtail SC/APC SM Low Insertion Loss for CATV

Waterproof fiber optic cable armored is the cable each simplex with buffer design, independent strength member and sheath to prevent damage from environment and mechanical stress.
Waterproof fiber optic patch cord is terminated connectors on this type of breakout cable. The inner diameter is usually 2.0mm or 3.0mm and the connectors can be chosen SC, FC, ST, LC, E2000 and so on.


FOC COMMUNICATION CO., LTD is the professional manufacture of fiber optic components. We produce the whole series fiber optic patc cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.

Applications

Switching between trunk line and distribution line

Connection of trunk line

High integrated equipment and devices

High density cable wiring system

Features

4-48core available

0.9, 2.0, 3.0 fanout available

Small volume, high fiber density

Easy to use, Easy to connect and reliable,

High tensile strength, Good grounding contact,

Waterproof, high performance, C

Commonly used in waterproof equipments, Suitable for field

Specifications

Item

Single Mode

Multi Mode

Insertion loss

≤0.3dB

≤0.3dB

Return loss

PC≥50dB, APC≥55dB, UPC≥60dB

Insert-pull test

1000 times

Repeatability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40℃~ +85℃

Ceramic ferrule spec

125.5um concentricity deviations:≤1μm

127um concentricity deviations:≤3μm

Suitable fiber

9/125μm

50/125μm, 62.5/125μm

Armored Fiber Optic Patch Cord, Breakout Patch Cord, Fiber Optic Assemblies, Fiber Jumpers

Product tags

waterproof fiber optic pigtail cable

,

waterproof fiber optic cable

,

waterproof fiber optic connectors
