G.652D SM Duplex Indoor Type Fiber Optic Patch Cord With OFNP Cable
G.652D SM Duplex Indoor Type Fiber Optic Patch Cord With OFNP Cable
Specifications
Brand Name :
FOCABLE
Model Number :
SM Duplex Fiber Patch Cord SC LC
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM
Cable Material :
LSZH
Cable Diameter :
3.0mm
Connector :
SC/APC, LC/UPC
Cores :
Duplex
Length :
5M
Description

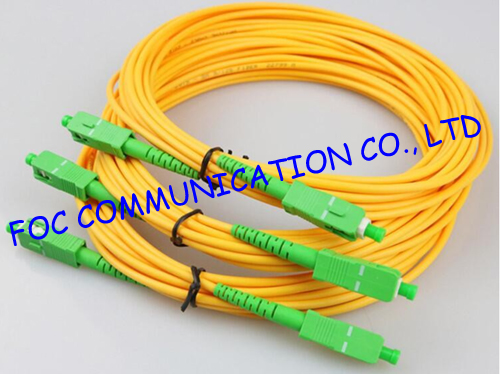

G.652D SM Duplex Indoor Type Fiber Optic Patch Cord With OFNP Cable

G.652D SM duplex indoor type SC/APC-LC/UPC patch cable with OFNP cable is used to connect the device to another for signal routing. It is composed of a fiber optic cable assembled with various connectors on both ends. We FOC COMMUNICATION CO., LTD provide all types of fiber optic patch cords including single mode, multimode, simplex, duplex, multi core patch cords, armored patch cords and waterproof patch cords. The main connectors are FC, SC, LC, ST, MU, MTRJ, E2000, MPO, MTP and so on.

Key Features
SC/APC-LC/UPC Connectors
Single mode duplex fiber optic cable
Micron: 9/125um
High precision ceramic fiber optic ferrule
100% optically tested to ensure high performance
Cable color yellow

Specifications

Item

Specifications

IL(insertion loss)

<0.3dB

RL(return loss)

PC≥50dB, APC≥60dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB(1000times)

Vibration

≤0.1dB(550Hz, 1.5mm)

Operating Temperature

-40～80℃

Ordering information

1.Connector one, LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO,

Connector two LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.
2.Ferrule interface type: UPC,APC
3.Fiber type; singlemode(G652,G655),MULTIMODE(50/125, 62.5/125),OM3
4.Fiber cable diameter(mm):Φ0.9, Φ2.0 ,Φ3.0
5.Cable length: Customized length

G.652D SM Duplex Indoor Type Fiber Optic Patch Cord With OFNP Cable

Fiber Optic Patchkabel, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
