FTTH fiber Project Simplex Core 4108M Fusion Splicer Machine
FTTH fiber Project Simplex Core 4108M Fusion Splicer Machine
FTTH fiber Project Simplex Core 4108M Fusion Splicer Machine
FTTH fiber Project Simplex Core 4108M Fusion Splicer Machine
Specifications
Brand Name :
FOCABLE
Model Number :
Fusion Splicer 4108M
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Material :
Quartz series
Core quantity :
Simplex
Fiber Type :
SM, MM, DS, NZDS
Splicing Loss :
0.02dB(SM)，0.01dB(MM)，0.04dB(DS)
Applicable Fiber :
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Description

Fusion Splicer 4108M Reliable Splicing Machine Used for FTTH fiber Project

General information

Fusion Splicer 4108M, with high performance price ratio, with smart appearance, reliable quality, 4108M is a special design for the installation, operation and maintenance of optical fiber specially designe a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.

Key Features

  • Used for FTTH and ordinary fiber project
  • Core to core alignment by PAS technology
  • 9 sec splicing time and 30 sec heat time
  • 300 X or Y view, 200 X and Y view
  • 3.5 inch digital high-quality LCD screen, observe X and Y view at same time
  • Three in one fixture, splicing single fiber, cable indoor and pig tail
  • Built in large capacity lithium battery of 200 times splicing and heating
  • Small size and light weight, 1.5KG including battery


Applications

  • Maintenance in Telecom
  • Maintenance CATV
  • Fiber Optic Lab Testing
  • Other Fiber Optic Measurements


Technical Specifications

Applicable fibers SM MM DS NZDS
Fiber diameter Cladding diameter:80-150μm; Coating diameter:100-1000μm
Fiber count Single
Fiber cleaved length 8-16mm (Coating diameter:250μm)
Actual average splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Typical splicing time Typical 9 sec (standard SM fiber)
Return loss ＞60dB
Splicing mode Auto Calibrate Normal Special
Fiber aligning method Meticulous,Core,Clad,Manual
Splicing program 53 (factory mode), 100(user mode)
Tube heating program 9 (factory mode), 40(user mode)
Tube typical heating time Typical 16～25 sec
Protection sleeve length 60mm, 40mm
Storage of splice result 10000 results, 24parameter per result , 100 set of images
Fiber image magnification 120X (X or Y view),60X (X and Y view)
Battery capacity Typical 300 cycles (splice/tube heat with inner Li-battery )
Monitor 3.5 inch color LCD monitor
Tension test 2N
Electrode life 2500
Terminal USB
Power supply AC 100-240V with AC adapter DC13.5V Inner Li-battery (5200mAH)
Operating condition 0-5000m above sea level, -10-50℃ Max wind velocity of 15m/s
Dimension 122mm(L)×148mm(W)×130mm(H)
Weight 1.4Kg excluding battery 1.7Kg including battery

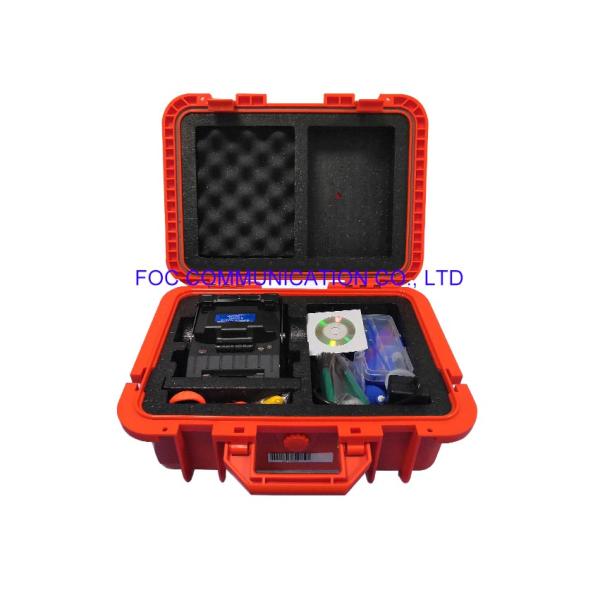

Standard Configuration of Fusion Splicer 4108M
No Name Qty
1 Fusion Splice 1 set
2 Fiber Cleaver 1 set
3 Fiber Stripper 1 pc
4 AC Adaptor 1 pc
5 Power cord 1 pc
6 Li Battery 1 pc
7 Charger 1 pair
8 Cooling tray 1 pc
9 Spare Electrodes 2 pair
10 User Manual CD 1 pc

FTTH fiber Project Simplex Core 4108M Fusion Splicer Machine
