SM/MM Harsh LC-LC 2 Fiber CPRI Fiber Patch Cord
SM/MM Harsh LC-LC 2 Fiber CPRI Fiber Patch Cord
SM/MM Harsh LC-LC 2 Fiber CPRI Fiber Patch Cord
SM/MM Harsh LC-LC 2 Fiber CPRI Fiber Patch Cord
SM/MM Harsh LC-LC 2 Fiber CPRI Fiber Patch Cord
SM/MM Harsh LC-LC 2 Fiber CPRI Fiber Patch Cord
Specifications
Brand Name :
FOCABLE
Model Number :
FTTA Patch Cord LC-LC 2F
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
G.652D, G.657A, G.655, SM or MM
Cable Material :
LSZH, TPU
Cable Diameter :
2.0mm, 0.9mm
Connector :
SC/APC, SC/UPC, LC/APC, LC/UPC
Cores :
4 core
Length :
1M, 2M, 3M, 5M or as per customer request
Armored :
Non-armored, armored
Quality Control :
100% test before shipping
Description

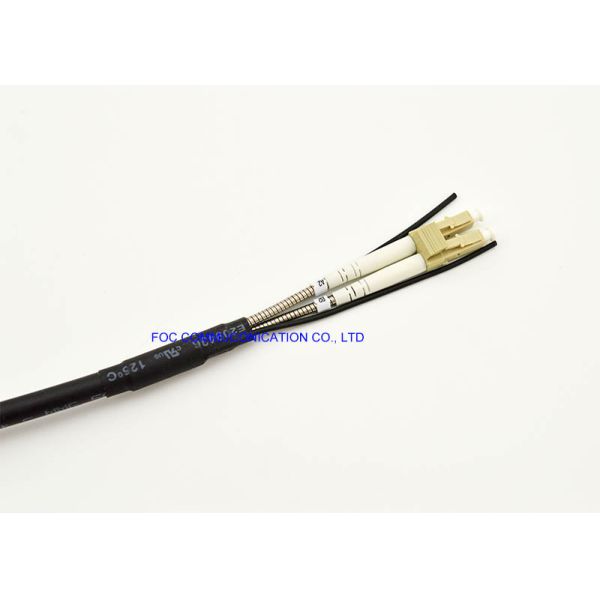

LC-LC Fiber Patch Cord FTTA Outdoor IP67 Waterproof GYFJH Cable 4 Fiber

FTTA remote optic fiber patch cables with duplex base station far transmission fiber cable are used for FTTA Fiber to the antenna And test records meets ROHS and Bell core GR 326-CORE standars

FOC COMMUNICATION offers Fiber to the antenna remote base station patch cable, consists of Duplex LC with amored outer housing to withstand harsh environment conditions when being used in outdoor application,duplex round far transmittion outdoor cable(water blocking aramid yarns and UV resistant black out jacket),sometimes with pulling eye. Her LC open bulkhead for easy access to SFP Module to realize the singal path from BBU to RRU.

Features
Typical Advantage
Waterproof and corrosion resistant
Field Installable
Armored Steel Tube for Rodent Resistance
With Big Capacity Data Transmission
Low Insertion Loss and High Return Loss

Applications
3G, 4G base station
BBU, RRU, RRH, LTE
FTTA, FTTP, FTTX, WIMAX
Military, Mining and shipboard
Aerospace and Defense
Horizontal and Vertical Cabling


Performance Parameters

Connector End A LC,FC,SC,ST
End B LC, FC, SC, ST
Cable Diameter(mm) 7.0
Material of jacket LSZH Black
Fiber Core 2 or 4
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.3 0.3
Return Loss(Min.dB) 50 35
Interchangeability(Max. dB) 0.2
Durability(Max. dB) 0.2
Repeatability(Max. dB) 0.1
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85

SM/MM Harsh LC-LC 2 Fiber CPRI Fiber Patch Cord

SM/MM Harsh LC-LC 2 Fiber CPRI Fiber Patch Cord
