1*8 PLC 16ports Fiber Optic Splitter Box Cassette 12F FATB-0416L
1*8 PLC 16ports Fiber Optic Splitter Box Cassette 12F FATB-0416L
1*8 PLC 16ports Fiber Optic Splitter Box Cassette 12F FATB-0416L
1*8 PLC 16ports Fiber Optic Splitter Box Cassette 12F FATB-0416L
Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Access Terminal Box FATB-0416L
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Supply Ability :
10000pcs/month
Delivery Time :
3-5days
Packaging Details :
1PCS/Carton
Reinforced Adapter :
16pcs SC/UPC or 16pcs SC/APC
Port :
16 Ports
IP Protection Level :
IP65 Protection Level
Fiber :
120 Fibers
Quality Control :
100% test before shipping
Splitter :
1*8 or 1*16 Splitter can be installed
Description

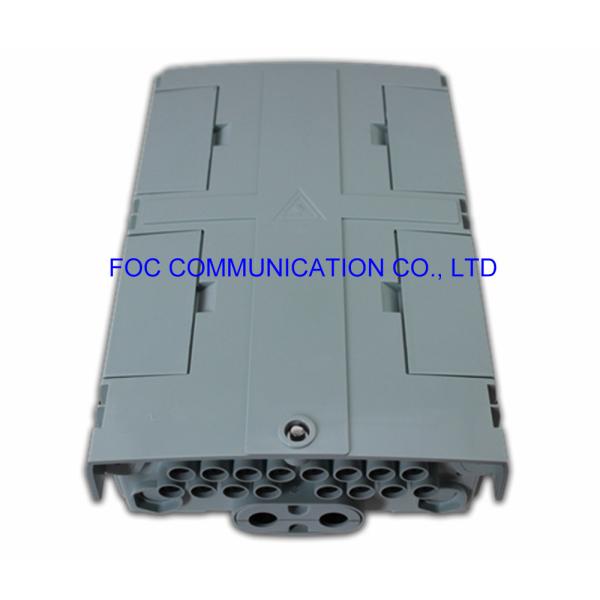

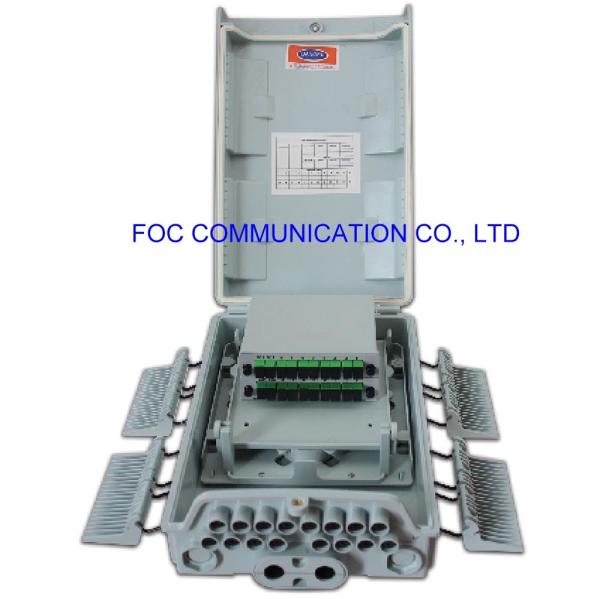

Fiber Access Termination Box FATB-0416L Loaded with Cassette Type PLC Splitter 1*8 or 1*16

Fiber access termination box FATB-0416L is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

 Features
 ● Water-proof design with IP-65 Protection level. ● Integrated with flap-up splice cassette and adapter holder. ● Maximum 12F splice capacity,stainless anti-rust bolts and nuts. ● Easy for maintainance and expansion. ● Fiber bend radius control more than 40mm. ● 180 degree access with buckled lock structure. ● 2pcs of 1*8 LGX and cassette type PLC splitter can be installed ● 16pcs of mechanical ports for 3-7mm drop cable. ● 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)
  Configuration
 Fiber Access Terminal FATB-0416L Parameter

 Material

 Size

 Max Capacity

 Reinforced Adapter

 Weight

 Color

 PC+ABS

 AxBxC(mm)

 Splice 120 Fibers

 PLC splittter

 16pcs SC/UPC

 1.85kg

 Grey/Black

 340x220x95


 2pcs of 1x8(SC)

 or 16pcs SC/APC

 Application
 ● Wall-mounted installation ● Pole-mounted installation ● Aerial-hanging installation ● Suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.

Optional Accessories
Pole mounted kits
