Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Access Terminal Box FATB-0424A
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Supply Ability :
10000pcs/month
Delivery Time :
3-5days
Packaging Details :
1PCS/Carton
Reinforced Adapter :
24pcs SC/UPC or 24pcs SC/APC
Port :
24 Ports
IP Protection Level :
IP65 Protection Level
Fiber :
120 Fibers
Quality Control :
100% test before shipping
Splitter :
1*8 or 1*16 Splitter can be installed
Description

Fiber Access Termination Box FATB-0424A Black Color Box 24 Cores Mechnical Sealing for FTTx Network System

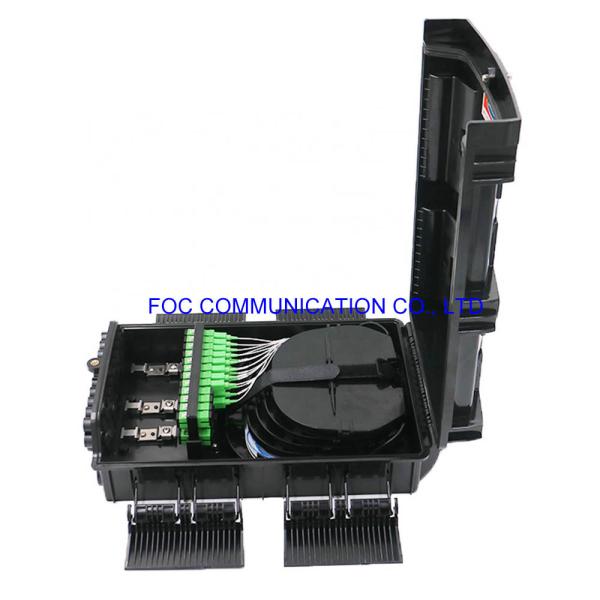

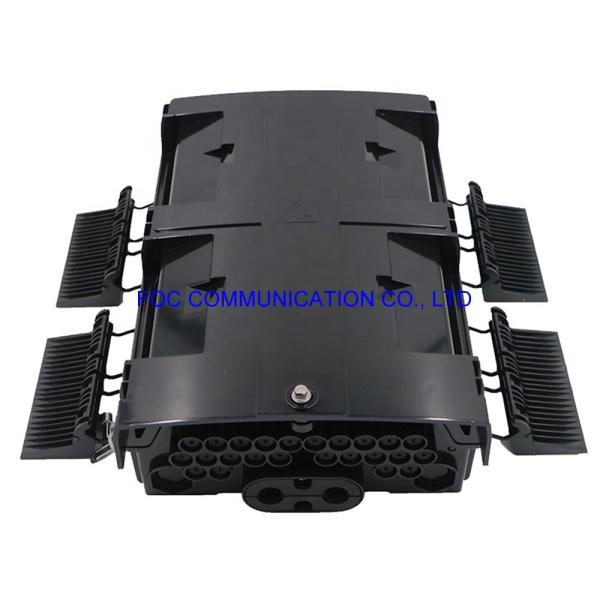

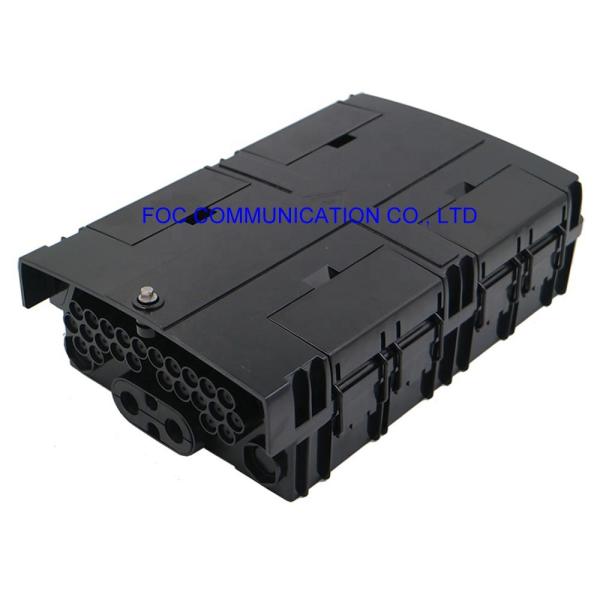

Fiber access termination box FATB-0424A is able to hold up to 24 subscribers and 120 splicing point. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

 Features
 ● Water-proof design with IP-65 Protection level. ● Integrated with flap-up splice cassette and adapter holder. ● Maximum 120F splice capacity,stainless anti-rust bolts and nuts. ● Easy for maintainance and expansion. ● Fiber bend radius control more than 40mm. ● 180 degree access with buckled lock structure. ● 3pcs of 1*8 PLC splitter can be installed ● 24pcs of mechanical ports for 3-7mm drop cable. ● 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)
  Configuration
 Fiber Access Terminal FATB-0424A Parameter

 Material

 Size

 Max Capacity

 Reinforced Adapter

 Weight

 Color

 PC+ABS

 AxBxC(mm)

 Splice 120 Fibers

 PLC splittter

 24pcs SC/UPC

 1.85kg

 Grey/Black

 340x220x95


 3pcs of 1x8(SC)

 or 24pcs SC/APC

  Application
 ● Wall-mounted installation ● Pole-mounted installation ● Aerial-hanging installation ● Suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.

Optional Accessories
Pole mounted kits
