Outdoor Multimode Fiber Patch Cord 2 Cores ODVA - LC Fiber Optic Assemblies
Outdoor Multimode Fiber Patch Cord 2 Cores ODVA - LC Fiber Optic Assemblies
Outdoor Multimode Fiber Patch Cord 2 Cores ODVA - LC Fiber Optic Assemblies
Outdoor Multimode Fiber Patch Cord 2 Cores ODVA - LC Fiber Optic Assemblies
Specifications
Brand Name :
FOCABLE
Model Number :
ODVA Patc Cord LC Type
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
G.652D, G.657A, G.655, SM or MM
Cable Material :
PVC, LSZH, OFNP, OFNR, TPU
Cable Diameter :
2.0mm, 0.9mm
Connector :
SC/APC, SC/UPC, LC/APC, LC/UPC, MPO
Cores :
Simplex, Duplex
Length :
1M, 2M, 3M, 5M or as per customer request
Armored :
Non-armored, armored
Quality Control :
100% test before shipping
Description

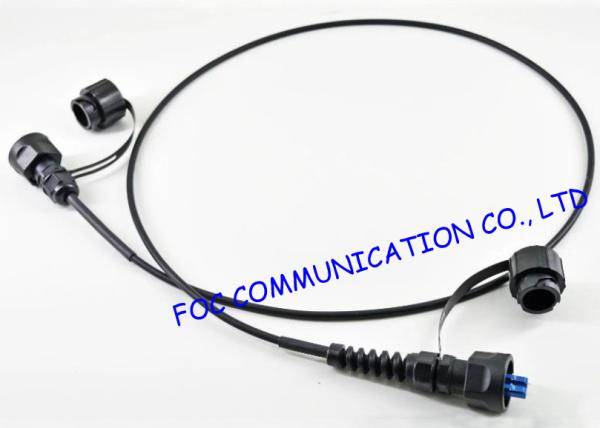

ODVA - LC Fiber Optic Assemblies 2 Cores Outdoor For FTTA Use

FOC COMMUNICATION CO., LTD offers ODVA-LC patch cords, ODVA-SC patch cord, ODVA-MPO patch cords as per customer requests, length from 1Meter to 500Meters.

Outdoor fiber optic assemblies ODVA BBU RRU is for CPRI application , that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE), and Remote Radio Units to the FTTA connectivity.

ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling these patch cables are always sealed with rugged fiber terminal junction boxes to meet the requirements of more antennas on a wireless tower. With the development of distributed antenna ODVA systems(DAS), connectors have became a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.


Specifications

Meet IP67 Standards

No tools required

Bayonet style locking mechanical

Designed for harsh environment applications

All fiber types and cable types are available
Exceptional optical performance in a high density LC standard compliant connector.

Integrated caps on the connectors and shutters in the couplers provide both laser eye safety and end face protection during mating/demating
Ease of use in all mating situations

Technical Data

Connector End A DLC (duplex LC), or SC, MPO, MTP
End B DLC (duplex LC), or SC, MPO, MTP
Fiber Core 2, 4…12
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.2 0.3
Return Loss(Min.dB) 55 60 35
Mating times 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
