ODVA Socket Patch Cord Fiber Optic MPO LC SC Waterproof IP67 For FTTA Network
ODVA Socket Patch Cord Fiber Optic MPO LC SC Waterproof IP67 For FTTA Network
ODVA Socket Patch Cord Fiber Optic MPO LC SC Waterproof IP67 For FTTA Network
ODVA Socket Patch Cord Fiber Optic MPO LC SC Waterproof IP67 For FTTA Network
ODVA Socket Patch Cord Fiber Optic MPO LC SC Waterproof IP67 For FTTA Network
ODVA Socket Patch Cord Fiber Optic MPO LC SC Waterproof IP67 For FTTA Network
Specifications
Brand Name :
FOCABLE
Model Number :
ODVA socket MPO, LC, SC
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Quality Control :
100% test before shipping
Fiber Type :
G.652D, G.657A, G.655, SM or MM
Connector :
SC/APC, SC/UPC, LC/APC, LC/UPC, MPO
Cores :
Simplex, Duplex
Description

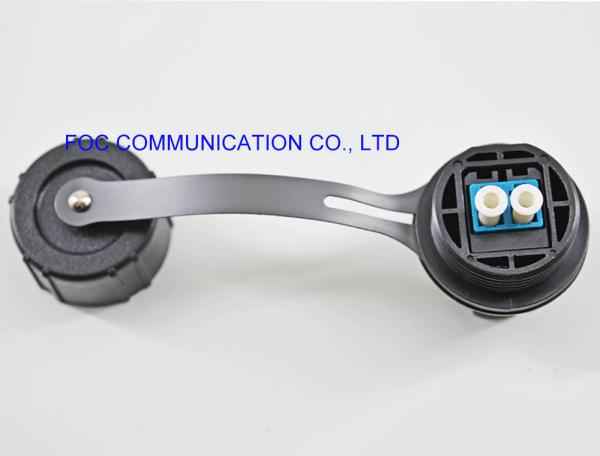

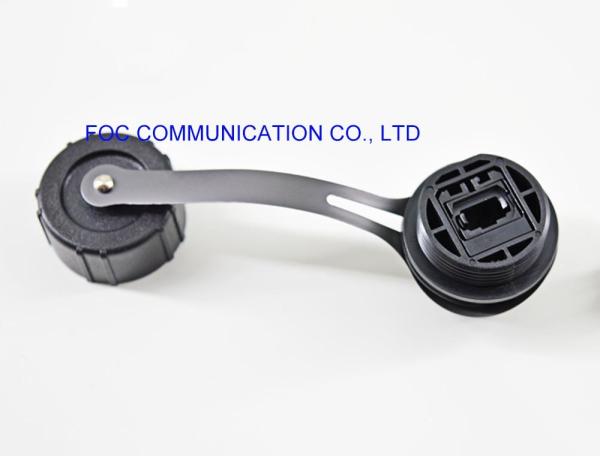

ODVA Socket With Adapters MPO, LC, SC Waterproof IP67 For FTTA Network

ODVA socket / adapter is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.

These ODVA adapters, together with IP67 rated compact RRH/RRU Helix cover connectors that have fast coupling. And these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.

With the development of distributed antenna syatems(DAS), ODVA, PDLC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.

FOC COMMUNICATION CO., LTD offers ODVA-LC socket, ODVA-SC socket, ODVA-MPO socket as per customer requests, compatible with the patch cords.


Features

Low insertion loss.

IP67 water, light weight, dustproof and corrosion resistant

The material of the jumper cables are all-weather and UV-resistant.

Cost effective solution for in house termination.

Wide range of operational temperature for outside plant -40 to +85°C

Wide range of cables to be used, 5-8mm OD cable with two 2.0mm to 3.0mm jacketed subunits
Chemical Resistance
Simple assembly requiring no special tools
Durable mechanical mating, minimum of 500 matings

Specifications

Item Type Parameter
Insertion Loss SM ≤0.30dB
MM ≤0.30dB
Return Loss SM ≥50dB
MM ≥35dB
Repetition Test Additional Loss≤0.1dB
Temperature Stability(-40℃～85℃) Additional Loss≤0.2dB,
Free fall resistance 500 falls onto concrete from 1.2M height
Bump resistance 4000 bumps @ 40g acceleration
Tensile Strength Tensile of 1500N, cable dependent
Operating temperature -40 to +70°C
Storage temperature -55 to +85°C

ODVA Socket Patch Cord Fiber Optic MPO LC SC Waterproof IP67 For FTTA Network

Optical fiber assemblies, outdoor cable assemblies, optical fiber patch cords, FTTX patch cord, FTTA patch cords
